Hyundai Santa Cruz: Light Bulbs / Side Repeater Lamp Replacement

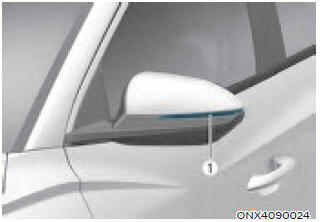

If the LED lamp (1) does not operate, have the system be inspected by an authorized HYUNDAI dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

    Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL) Replacement
    Type A (bulb) (1) Headlamp (Low/High) (2) Turn signal lamp (3) Daytime running light/ Position light (4) Side marker Headlamp / Turn signal lamp 1. Engage the parking brake anddisconnect the negativ ...

    Rear Combination Lamp Replacement
    (1) Tail lamp (2) Turn signal lamp/ Stop Lamp (3) Tail lamp (4) Rear side marker Turn signal lamp/ Stop lamp 1. Turn off the engine. 2. Open the tailgate. 3. Remove the lamp assembly retaining bolt ...
