Hyundai Santa Cruz: Light Bulbs / Rear Combination Lamp Replacement

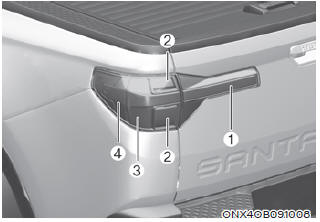

(1) Tail lamp
(2) Turn signal lamp/ Stop Lamp
(3) Tail lamp
(4) Rear side marker

Turn signal lamp/ Stop lamp

1. Turn off the engine.

2. Open the tailgate.

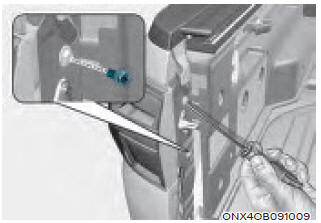

3. Remove the lamp assembly retaining bolts with cross-tip screw driver.

4. Remove the rear combination lamp assembly from the body of the vehicle.

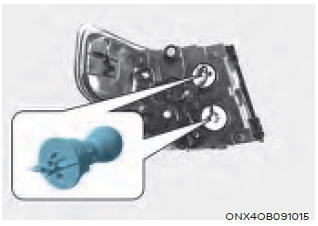

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

9. Reinstall the lamp assembly to the body of the vehicle.

Tail lamp/Rear side marker

If the LED lamp does not operate,have the system be inspected by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

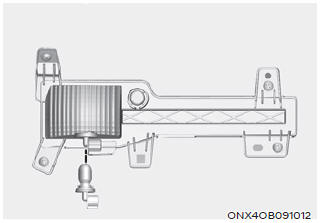

Reverse lamp

1. Turn off the engine.

2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

3. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

4. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

    Side Repeater Lamp Replacement
    If the LED lamp (1) does not operate, have the system be inspected by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lam ...

    High Mounted Stop Lamp and Top Mounted Bed Lamp / Side Mounted Bed Lamp Replacement
    [A] : High Mounted Stop Lamp [B] : Top Mounted Bed Lamp If the LED light source does not operate, have the system be inspected by an authorized HYUNDAI dealer. The LED light source cannot be repla ...
