Hyundai Santa Cruz: Ignition System / Schematic Diagrams

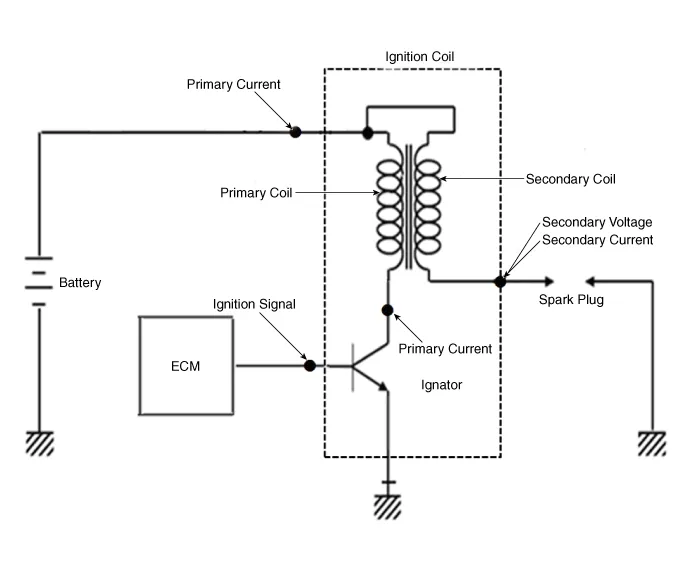

- Schematic Diagrams

    Troubleshooting
    - Troubleshooting Trouble symptomProbable causeRemedy Engine will not start or is hard to start (Cranks OK)Ignition lock switchInspect ignition lock switch, or replace as required Ignition coilIn ...

    Repair procedures
    - On-vehicle Inspection Inspect ignition coil assembly and Perform spark test 1.Check for DTCs.     • If a DTC is present, perform troubleshooting in accordance with the procedur ...
