Hyundai Santa Cruz: Motor Driven Power Steering / Repair procedures

- Inspection Before and after servicing the MDPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and if abnormal symptom is detected, perform necessary remedy and inspection.

Test conditionNormal condition: Motor must not supply steering assist.
SymptomPossible causeRemedy
IG OffMotor supplies steering assist.SAS is not calibrated.Perform the SAS calibration using a scan tool.
IG power suppliesInspect the IG power supply line.

Test conditionNormal condition: Motor must not supply steering assist, Warning lamp is illuminated.
SymptomPossible causeRemedy
IG On/Engine OffMotor supplies steering assist.SAS is not calibrated.Perform the SAS calibration using a scan tool.
EMS CAN signal is not received.Inspect the CAN line.
Warning lamp is not illuminated.Cluster faultInspect the cluster and cluster harness.

Test conditionNormal condition: Motor supplies steering assist, Warning lamp is not illuminated.
SymptomPossible causeRemedy
IG On/Engine OnWarning lamp is illuminated and motor does not supply steering assist.MDPS (Hot at all times) and IG power supply faultInspect the connector and harness for MDPS (Hot at all times) and IG power supply line.
DTC is detected by system.Perform the self test using a scan tool and repair or replace.
Warning lamp is illuminated and motor supplies steering assist.ASP is not calibrated.Perform the MDPS calibration using a scan tool.
CAN communication between MDPS and cluster is fault.Inspect the CAN line.
DTC is detected by systemPerform the self test using a scan tool and repair or replace.

SAS : Steering Angle Sensor CAN : Controller Area NetworkEMS : Engine Management System



The following symptoms may occur during normal vehicle operation and if there is no MDPS warning light illumination, the MDPS system is not malfunctioning.

• After switching the ignition on, the steering wheel becomes heavier for about 2 seconds to perform MDPS system diagnostics, and then returns to normal steering condition.

• When switching on or off the ignition, the MDPS relay noise may occur, which is considered normal.

• If the vehicle is steered in stationary or low speed driving condition, motor noise may occur, which is considered normal.

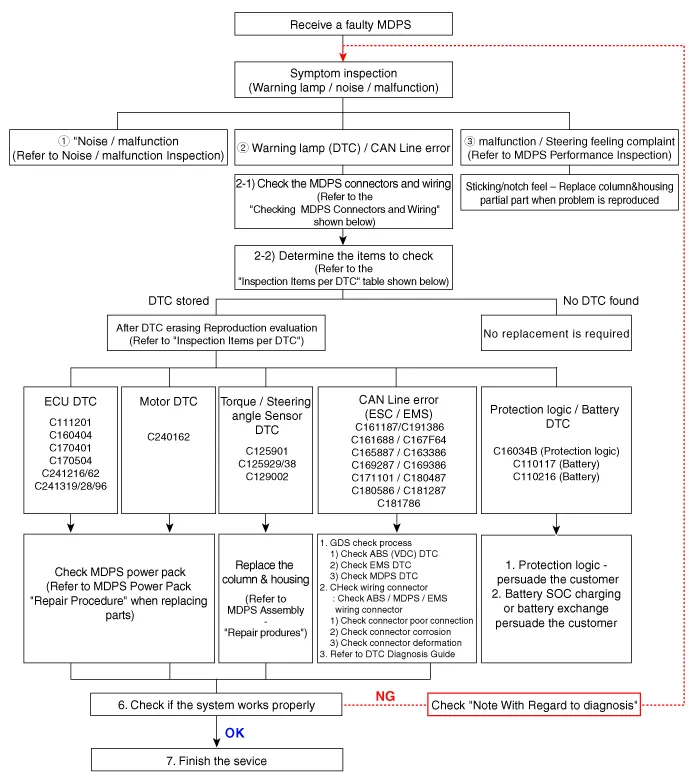

- A/S Repair produres MDPS System A/S Workflow ※ For detailed DTC or other DTC A/S procedures, see "MDPS DTC Diagnostic Guide"

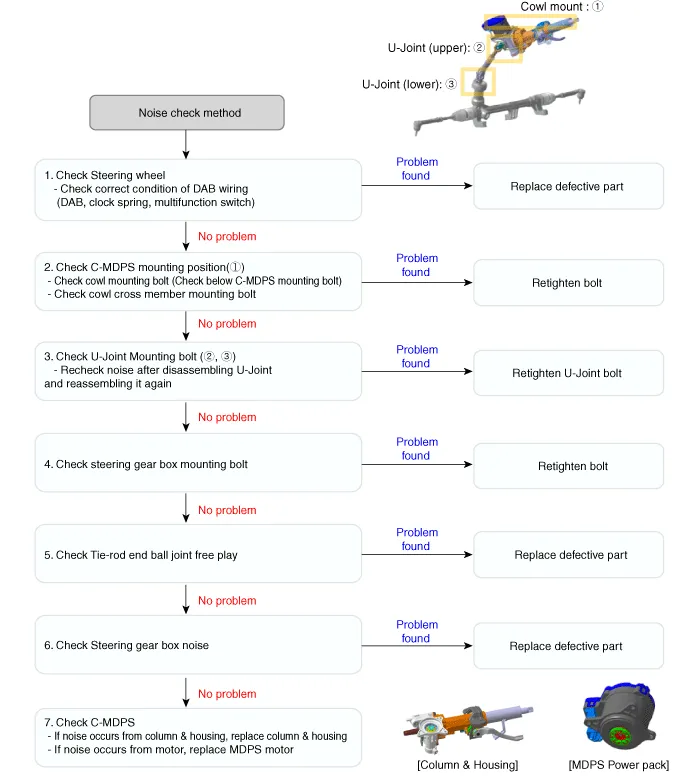

① Noise / malfunction Inspection

② Warning lamp (DTC) / CAN Line error 2 - 1 Checking Connectors and Wiring

1.Checking Connectors and Wiring.Check for damage, push-back, or improper connection in each connector and wiring.

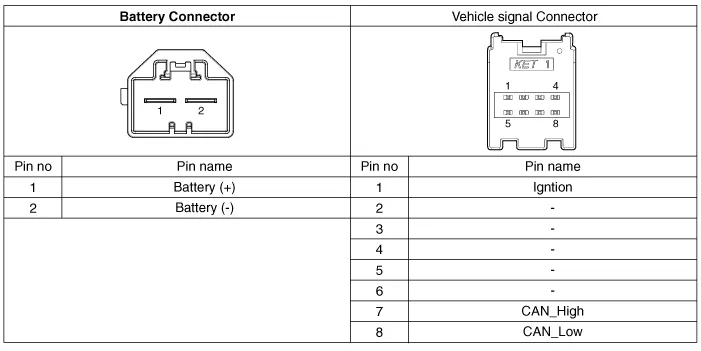

(1)Check the wiring on the vehicle side.

– Check for open / short - circuit due to faulty connection, damage, or foreign substance.

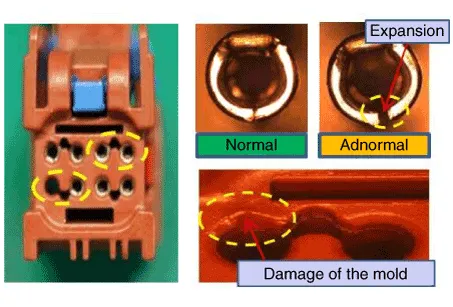

(2)Check the motor connector.

– Terminal Expansion and damage



• Must be replaced the MDPS motor if occur terminal expansion and damage.(Refer to Motor Driven Power Steering - "MDPS Power Pack Assembly")

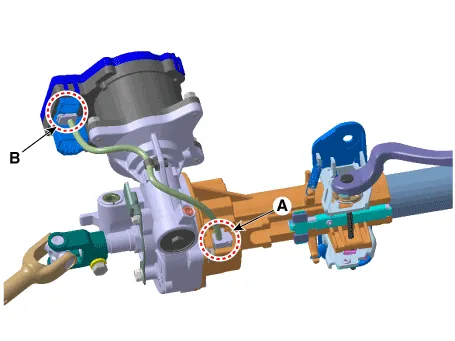

(3)Remove the grommet and then check the wiring on the TAS side (A) and ECU side (B).

– Check for damage, push-back, or improper connection in each connector and wiring.



• For DTC C125901 / C125929 / C125938 / C129002, exchange MDPS wiring.(Refer to Motor Driven Power Steering - "MDPS Wiring")

• If problems are found during the MDPS wiring check, replace the MDPS column & housing.(Refer to Motor Driven Power Steering - "MDPS Column & Housing")

2 - 2 Inspection Items per DTC ※ For detailed DTC or other DTC A/S procedures, see "MDPS DTC Diagnostic Guide"
DTCProblemFirst analysis methodHow to repair
C129002Torque sensor signal errorFirst erase DTC,
check connector connection
When the sensor connector flows, the warning lamp reoccurs Replace the sensor cable, and replace the column & housing (56390)
C125901
C125929
C125938
Steering angle signal errorErase DTC after resetting Steering angle zero point
check connector connection
C111201Torque sensor power supply errorFirst erase DTC, check connector connectionWhen the sensor connector flows, the warning lamp reoccurs Replace the sensor cable, and replace the power pack (56370)
C160404ECU hardware errorCheck after erasing the DTCIn case of reoccurrence, replace MDPS power pack (56370)
C170401Relay breaking of a wire
C170504
ECU over/discharge error
C241216
C241262
Motor circuit break / short
Motor current error
C241319
C241328
C241396
Over current error
Motor electric current gate error
Broken the motor current sensor
C240162Motor circuit error
C126154Steering angle zero point error1. Check after resetting Steering angle zero point
2. Check sensor connector poor connect
Resetting Steering angle zero point or replace column & housing (56390)
C161187
C161F64
C161F86
Not received the EMS CAN message
Vehicle speed monitoring error
Vehicle speed signal error
1. Check chassis CAN condition
2. Check connector connection
3. Check engine ECU
4. Start OFF history confirmation message while driving
Erase DTC (No MDPS replacement)
C161688CAN BUS OFF
C162887
C163386
Not received the cluster CAN signal
Cluster display vehicle speed error
Check cluster connector connection
C169287
C169386
Not received the VSM message
ESC signal error
Check ESC, check chassis CAN condition
C171101ECU abnormal endRecheck after erasing the DTC
C180487
C180586
Cannot be received the LKA message
LKA signal error
Check LKA, check CAN line
C181287
C181786
Not received the gateway CAN message
Gateway CAN signal error
Check gateway

③ MDPS Performance Inspection

1.Inspect steering angle and DTCs relevant to the steering system.

2.Inspection for heavy steering effort

(1)Inspect tire pressure and width.

(2)Check DTCs relevant to the CAN communication error.

(3)Check the wheel alignment.

④ MDPS common problems
Case 1Case 2Case 3

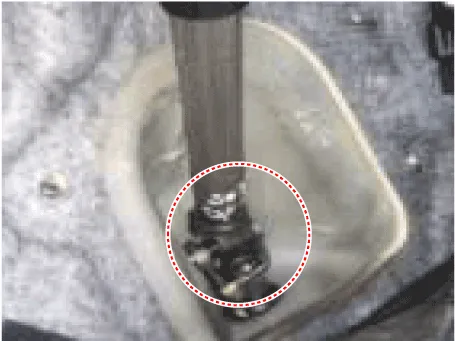

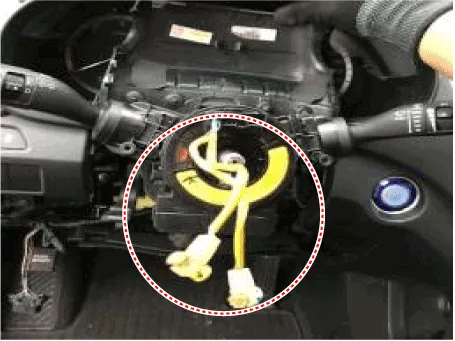

U/joint bolt mount defectClock spring noiseDAB / Wire noise
Retighten the boltReplace clock springRearrange and replace DAB

Case 4Case 5Case 6

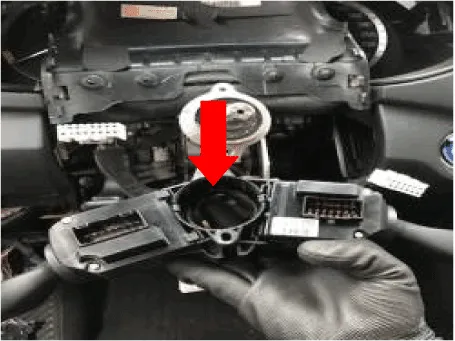

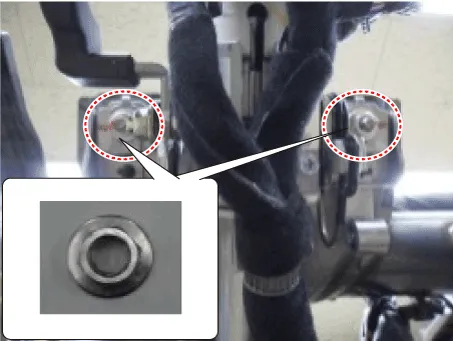

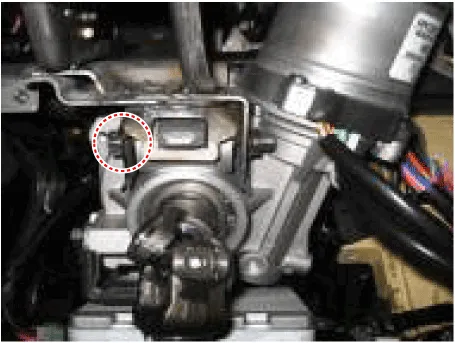

Multifunction switch noiseM8 nut mount defectM10 nut mount defect
Replace multifunction switchRetighten nut Retighten nut

Case 7 Case 8

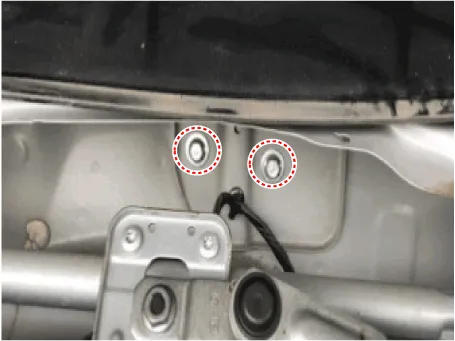

Cowl top bolt mount defectCowl bar nut mount defect
Retighten cowl top boltReplace clock spring



Cautions to be taken when handling the MDPS (Motor Driven Power Steering)

• Failure occurs due to internal damage because of the drop of and shock and excessive external force on the new partial component.→ Be cautious of shock on the partial component and replace the damaged part (due to drop, etc.) with a new one.

• When fastening the steering, excessive impact may result in twisting the center point of the torque sensor.

• When removing/installing the connector the wiring may be damaged (deformed) by excessive external force.

• Be cautious when storing and replacing the partial components under the abnormal temperature and humidity conditions.
