Setting features

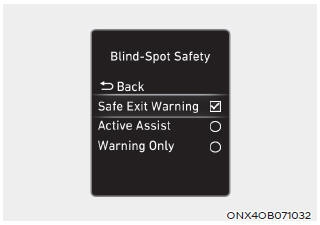

Safe Exit Warning
With the engine on, select 'Driver Assistance>Blind-Spot Safety>Safe Exit Warning' from the Settings menu to turn on Safe Exit Warning and deselect to turn off the function.
WARNING
The driver should always be aware of his or her surroundings. If ‘Safe Exit Warning’ is deselected, Safe Exit Warning cannot assist you.
Information
If the engine is restarted, Safe Exit Warning will maintain the last setting.

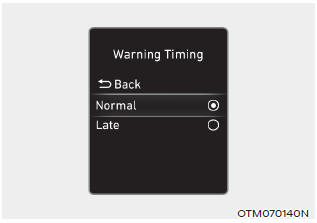

Warning Timing
With the engine on, select 'Driver Assistance>Warning Timing' from the Settings menu to change the initial warning activation time for Safe Exit Warning.
When the vehicle is first delivered, Warning Timing is set to ‘Normal’. If you change the Warning Timing, the Warning Timing of other Driver Assistance systems may change.

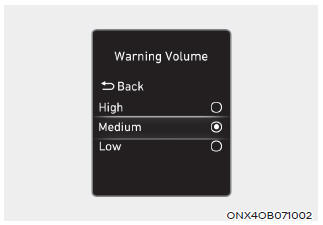

Warning Volume
With the engine on, select 'Driver Assistance>Warning Volume' from the Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Safe Exit Warning.
If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.
CAUTION
