Hyundai Santa Cruz: Rear View Monitor (RVM) / Rear View Monitor Settings

Camera settings

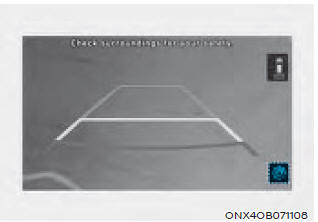

You can change Rear View Monitor ‘Display Contents’ or ‘Display Settings’ by touching the setup icon () on the screen while Rear View Monitor is operating, or selecting 'Driver Assistance>Parking Safety>Camera Settings' the Settings menu while the engine is on.

• In the Display Contents, you can change settings for ‘Rear View’, and in the Display Settings, you can change the screen’s ‘Brightness’ and ‘Contrast’.

Extend Rear Camera Use

With the engine on, select ‘Display>Extend Rear Camera Use' from the Infotainment system Setup menu to turn on Extended rear view function and deselect to turn off the function.
