Hyundai Santa Cruz: Rear View Monitor (RVM) / Rear View Monitor Operation

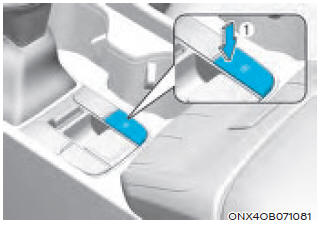

Operating button

Parking/View button

Press the Parking/View button (1) to turn on Rear View Monitor.

Press the button again to turn off the function.

Rear view

Operating conditions

  • Shift the gear to R (Reverse), the rear view image appears on the screen.
  • Press the Parking/View button (1) while the gear is in P (Park), the rear view image appears on the screen.

Off conditions

  • The rear view cannot be turned off when the gear is in R (Reverse).
  • Press the Parking/View button (1) again while the gear is in P (Park) with the rear view on the screen, the rear view turns off.
  • Shift the gear from R (Reverse) to P (Park), the rear view turns off.

Extended rear view function

The rear view will maintain showing on the screen to help you when parking.

Operating conditions

Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view appears on the screen.

Off conditions

  • When vehicle speed is above 6 mph (10 km/h), the rear view turns off.
  • Shift the gear to P (Park), the rear view turns off.
  • Press the Parking/View button (1), the rear view turns off.

Rear top view

When you touch the icon, the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.
