Hyundai Santa Cruz: Rear Door / Rear Door Belt Inside Weatherstrip

- Replacement

1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")

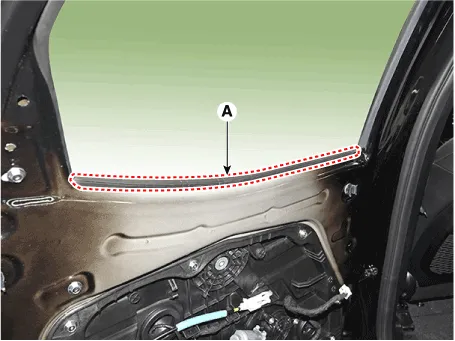

2.Remove the rear door belt inside weatherstrip (A).

3.To install, reverse removal procedure.



• When installing, install it by first contacting the inside part.

    Rear Door Belt Outside Weatherstrip
    - Replacement 1.Pull down the rear door window glass to the lowest level by pressing the power window glass switch. 2.Remove the rear door delta inner cover (A). 3.Loosen the mounting screw, r ...

    Rear Door Side Weatherstrip
    - Replacement [Rear door side weatherstrip] 1.Loosen the rear door checker (B) mounting bolt.Tightening torque :16.7 - 21.6 N.m (1.7 - 2.2 kgf.m, 12.3 - 15.9 lb-ft) 2.Detach the clips, then remo ...
