Hyundai Santa Cruz: Engine Control System / Rail Pressure Sensor (RPS)

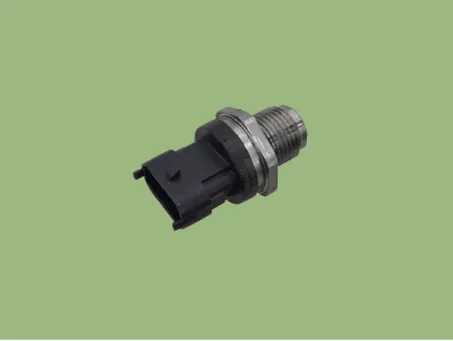

- Description Installed on the delivery pipe, the Rail Pressure Sensor (RPS) measures the instantaneous fuel pressure in the delivery pipe. The sensing element (semiconductor element) built into the sensor converts the pressure to voltage signal. By using this signal, the ECM controls the correct injection amount and timing and adjusts the fuel pressure with the fuel pressure regulator valve if the actual pressure calculated by the RPS output signal is different from the target pressure.

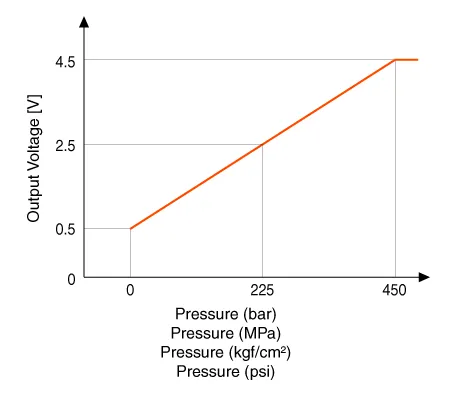

- Specification ▷ Type : Piezo-electric type
PressureOutput Voltage (V)
[Vref=5V]
bar[MPa (kgf/cm², psi)]
00 (0, 0)0.5
22522.5 (229.4, 3263.3)2.5
45045 (458.9, 6526.7)4.5

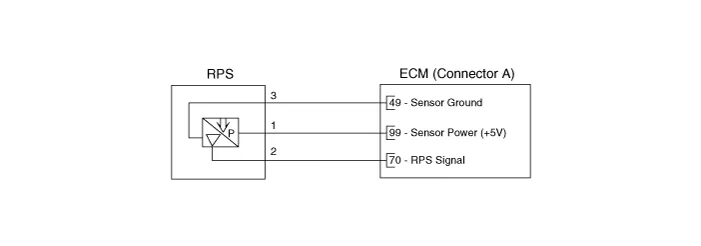

- Circuit Diagram

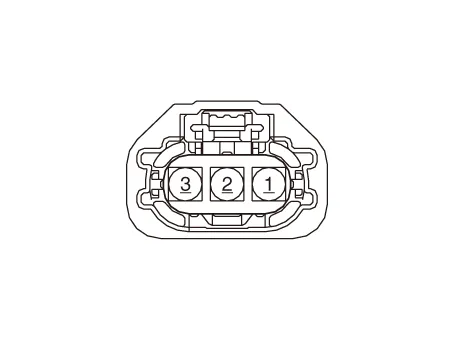

Harness Connector

- Inspection

1.Connect the diagnostic tool on the Data Link Connector (DLC).

2. Measure the output voltage and fuel pressure of the RPS at idle and various engine speed.

Condition Output Voltage (V)
IdleAbout 1.2
1,500 rpm2.0 - 2.2
6,300rpmAbout 2.8

- Removal

1. Release the Residual Pressure in Fuel Line.(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")

2.Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

3. Remove the Intake Manifold.(Refer to Engine Mechanical System - "Intake Manifold")

4. Remove the delivery pipe foam (A).

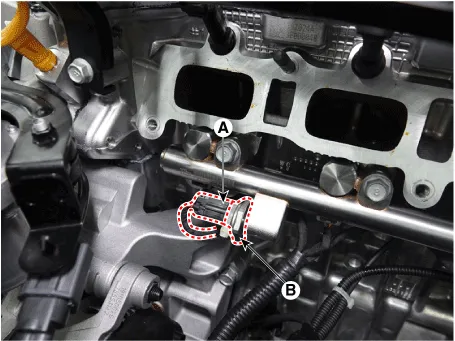

5.Disconnect the rail pressure sensor connector (A).

6. Remove the rail pressure sensor (B) from the delivery pipe.

Tightening torque :29.4 -34.3 N.m (3.0 - 3.5 kgf.m, 21.6 - 25.3 lb-ft)

- Installation



• Install the component to the specified torques.

• Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

1.Install in the reverse order of removal.
