Hyundai Santa Cruz: Seat Electrical / Power Seat Motor

- Inspection Seat Motor

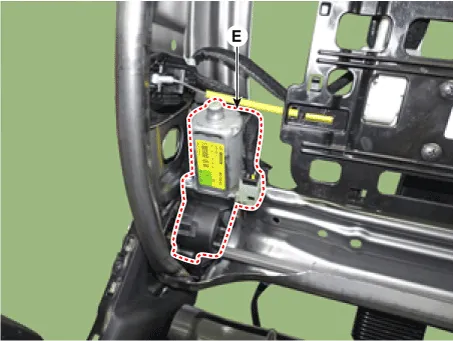

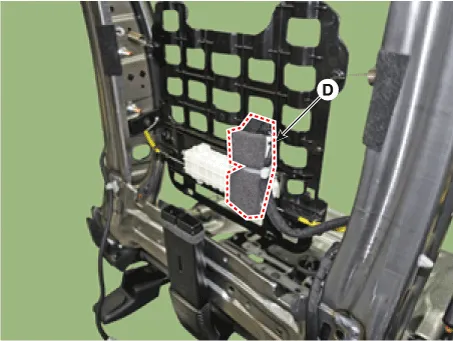

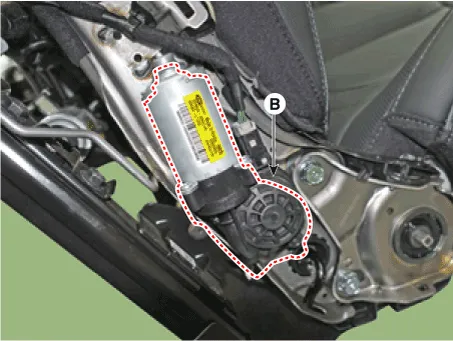

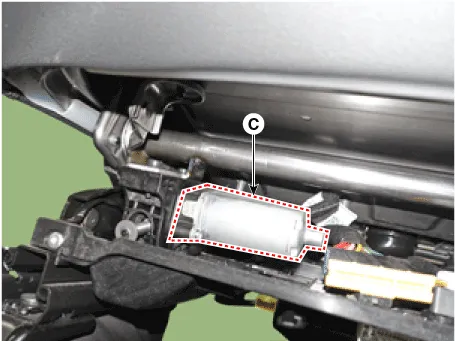

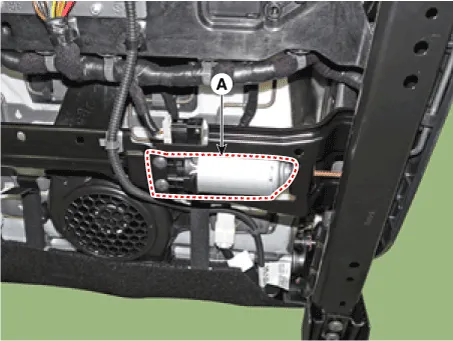

1.Remove the front seat assembly.(Refer to Body - "Front Seat Assembly")A: Slide motorB: Rear height motorC: Front height motorD: Lumbar support motor E: Reclining motor

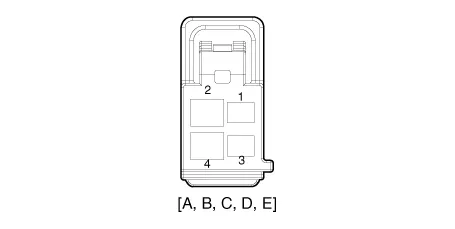

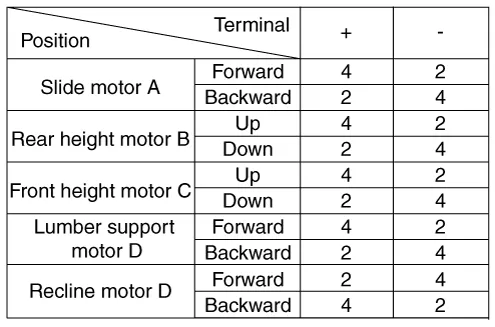

2.When the battery power is supplied to the motor connector, check the motor for smooth operation.

3.Reverse the connections and check that the motor turns in reverse.

4.If there is an abnormality, replace the motors.

Reclining Motor Limit Switch

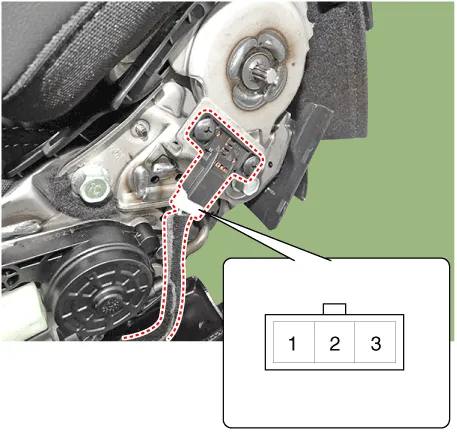

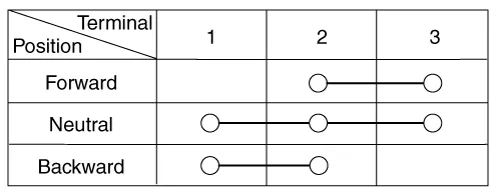

1.Disconnect the limit switch and operate the limit switch and then check for continuity between the terminals.

2.Make sure that the seat operation is normal in the reverse after the maximum operation.

3.If there is an abnormality, replace the limit switch.

    Components and Components Location
    - Component Location 1. Lumber support motor 2. Reclining motor3. Front height motor4. Slide motor5. Rear height motor6. Lumbar support switch7. Reclining switch8. Power seat switch ...

    Power Seat Control Switch
    - Circuit Diagram Driver Power Seat Swtich Passenger Power Seat Swtich - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front seat shield outer cover.(Refer to ...
