Hyundai Santa Cruz: Seat Electrical / Power Seat Control Switch

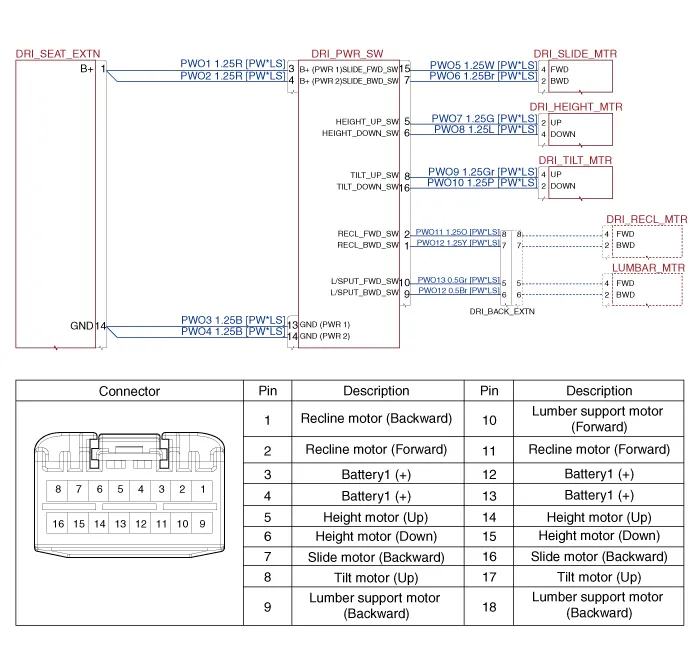

- Circuit Diagram Driver Power Seat Swtich

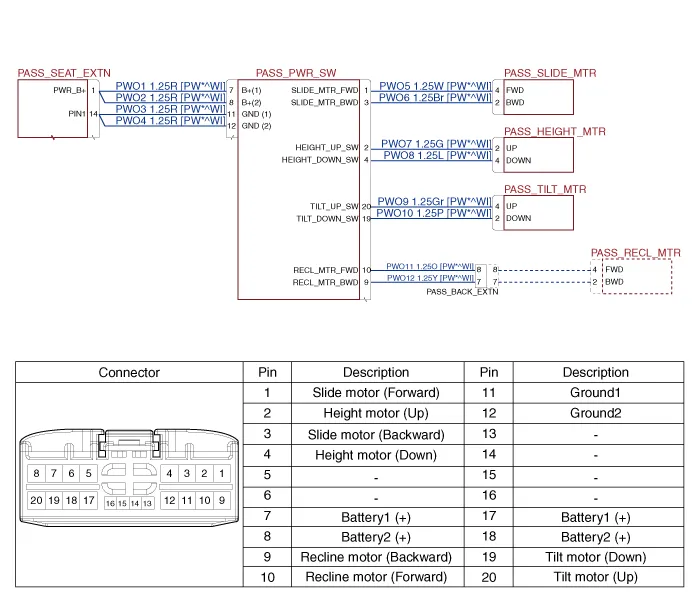

Passenger Power Seat Swtich

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front seat shield outer cover.(Refer to Body - "Front Seat Shield Outer Cover")

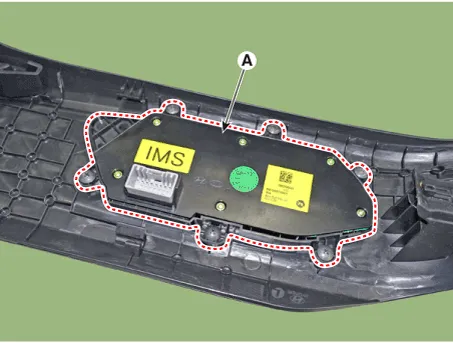

3.Remove the power seat control switch (A) after loosening screws.

- Installation

1.Install the power seat control switch after connecting the connector.

2.Install the front seat shield outer cover.

3.Connect the negative (+) battery terminal.

    Power Seat Motor
    - Inspection Seat Motor 1.Remove the front seat assembly.(Refer to Body - "Front Seat Assembly")A: Slide motorB: Rear height motorC: Front height motorD: Lumbar support motor E: Reclining moto ...

    Seat Heater (Non-Air Ventilation)
    - Components 1. Seat heater unit2. Seat cushion heater 3. Seat back heater - Components Driver/Passenger Seat Heater - Inspection Driver/Passenger 1.Check for continuity and ...
