Operating conditions
Navigation-based Smart Cruise Control is ready to operate if all of the following conditions are satisfied:
Information
For more details on how to operate Smart Cruise Control, refer to “Smart Cruise Control (SCC)” section in chapter 7.
Navigation-based Smart Cruise Control display and control
When Navigation-based Smart Cruise Control operates, it is displayed on the cluster as follows:

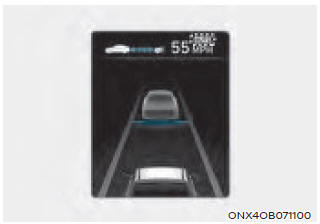

• Navigation-based Smart Cruise Control standby
If the operating conditions are satisfied,
the white symbol illuminates.

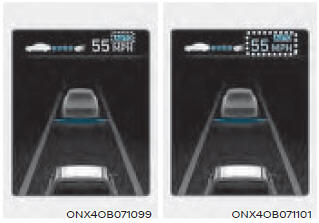

• Navigation-based Smart Cruise Control operating
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green symbol illuminates on the
cluster.
If the Highway Auto Speed Change
function operates, the symbol and
set speed illuminates in green on the
cluster, and an audible warning sounds.
WARNING

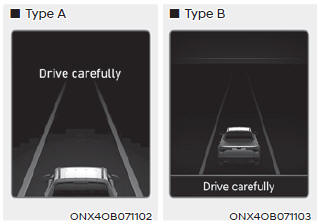

‘Drive carefully’ warning message appears in the following circumstances:
- Navigation-based Smart Cruise Control is not able to slow down your vehicle to a safe speed
Information
Highway Auto Curve Slowdown and
Highway Auto Speed Change function
uses the same symbol.
Highway Auto Curve Slowdown
Highway Auto Speed Change
Information
