Hyundai Santa Cruz: Exhaust Emission Control System / CVVT (Continuously Variable Valve Timing) System

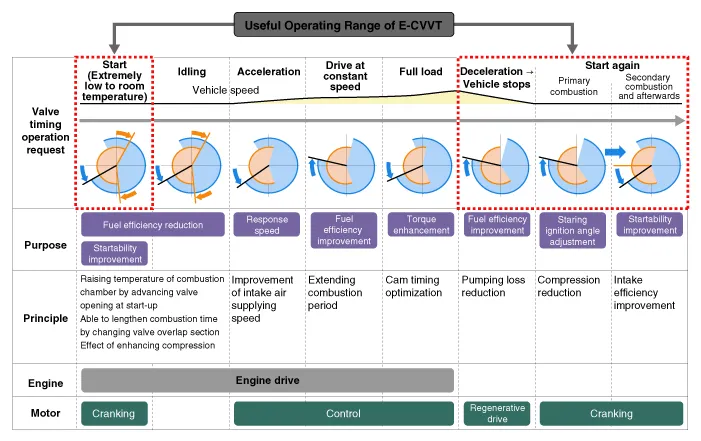

- Description Electric Continuous Variable Valve Timing system (E-CVVT) Electric E-CVVT system is electric continuous variable valve timing system. It is located on the intake camshaft of the engine and uses motor rotation to control the rotation angle of camshaft relative to the rotation of crankshaft regardless of engine pressure.E- CVVT controls the DC motor current (duty signal) to more closely control the system compared to the previous pressure type, by increasing reaction speed of cam, improving startability, and reducing the emission of exhaust gas. Also, operation range of intake valve (valve opening angle) is expanded. So, the output and fuel efficiency are improved. - Operation Principle Electric Continuous Variable Valve Timing system (E-CVVT)

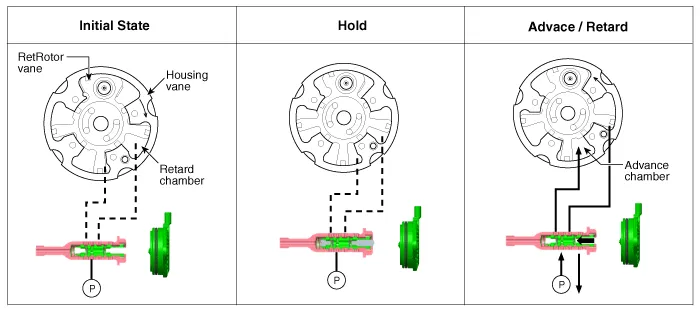

[Center OCV Type CVVT] The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.



• The variable force solenoid (VFS) changes its force depending on the PWM duty to control the stroke of the OCV.

• It also controls the lock, unlock, advanced, retarded, and holding functions.

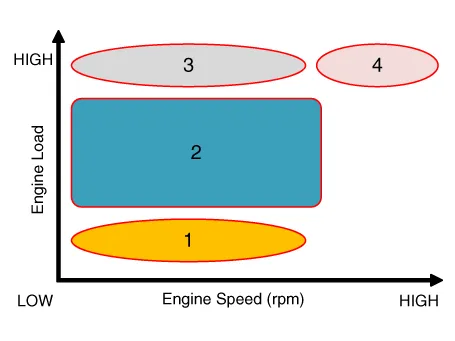

[CVVT System Mode]

(1) Low Speed / Low Load (2) Part Load


(3) Low Speed / High Load (4) High Speed / High Load



Driving ConditionExhaust ValveIntake Valve
Valve TimingEffectValve TimingEffect

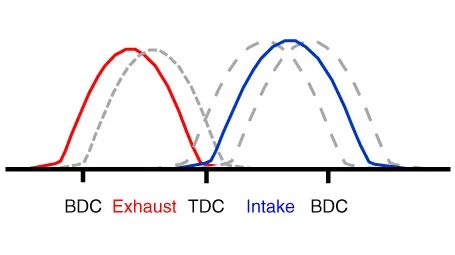

(1) Low Speed/Low LoadCompletely Advance* Valve Under-lap
* Improvement of combustion stability
Middle* Valve Under-lap
* Improvement of combustion stability

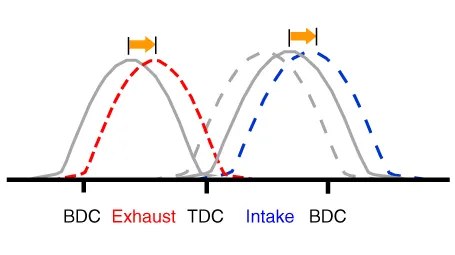

(2) Part LoadRetard* Reduction of HCRetard* Reduction of pumping loss

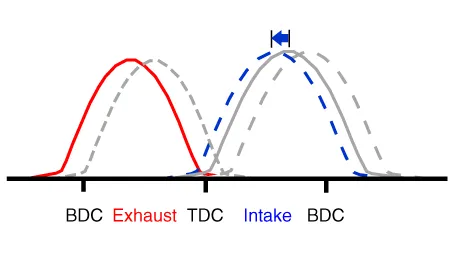

(3) Low Speed /High LoadCompletely Advance* Reduction of pumping lossAdvance* Prevention of intake back flow (Improvement of volumetric efficiency)

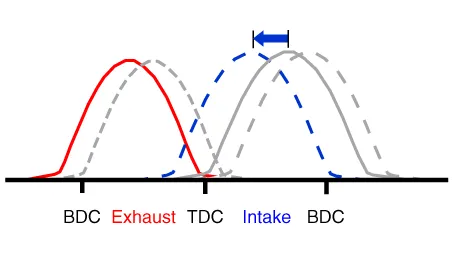

(4) High Speed/High LoadCompletely Advance* Reduction of pumping lossAdvance* Prevention of intake back flow (Improvement of volumetric efficiency)
