Hyundai Santa Cruz: Lubrication System / Oil Level Sensor

- Removal and Installation

1.Remove the engine room under cover.(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

2.Drain the engine oil.(Refer to Lubrication System - "Engine Oil")

3.Disconnect the oil level sensor connector.

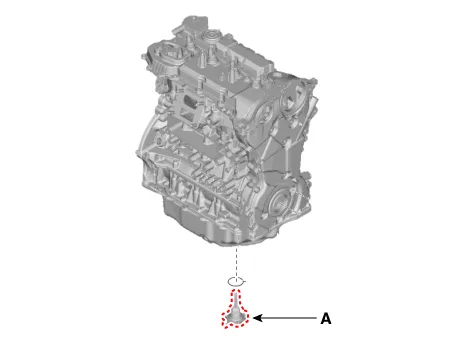

4.Remove the oil level sensor (A).

Tightening torque :8.8 - 9.8 N·m (0.9 - 1.0 kgf·m, 6.5 - 7.2 lb·ft)



• Always use new gasket.

5.Install in the reverse order of removal.
