To set speed limit

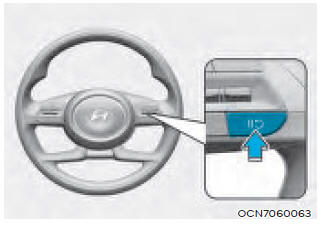

1. Press and hold Driving Assist
() button at the desired speed. The
Manual Speed Limit Assist enabled
(
) indicator will illuminate on
the cluster.

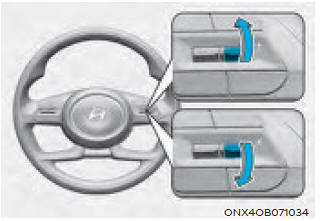

2. Push the + switch up or - switch down, and release it at the desired speed.
Push the + switch up or - switch down and hold it. The speed will increase or decrease to the nearest multiple of five (multiple of ten in km/h) at first, and then increase or decrease by 5 mph (10 km/h).

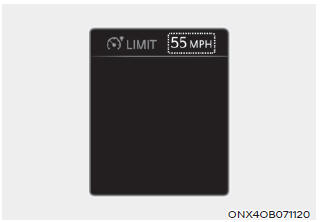

3. The set speed limit is displayed on the cluster.
If you would like to drive over the preset speed limit, depress the accelerator pedal beyond the pressure point to activate the kickdown mechanism.
The set speed limit will blink and chime will sound until you return the vehicle speed within the speed limit.
Information
To temporarily pause Manual Speed Limit Assist
[A] : Type A, [B] : Type B
Push the switch to temporarily
pause the set speed limit. The set speed
limit will turn off but the Manual Speed
Limit Assist enabled (
) indicator
will stay on.

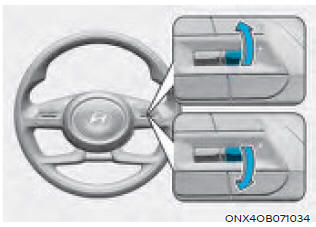

To resume Manual Speed Limit Assist
To resume Manual Speed Limit Assist
after the function was paused, push the
+, -, switch.
If you push the + switch up or – switch down, vehicle speed will be set to the current speed on the cluster.
If you push the switch, vehicle
speed
will resume to the preset speed.
To turn off Manual Speed Limit Assist

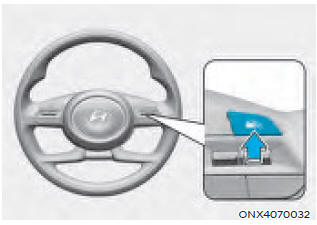

Press the Driving Assist ()
button
to turn Manual Speed Limit Assist off.
The Manual Speed Limit Assist enabled
(
) indicator will go off.

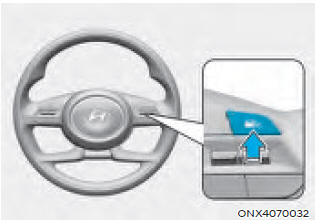

Always press the Driving Assist ()
button to turn Manual Speed Limit Assist
off when not in use.
WARNING
Take the following precautions when using Manual Speed Limit Assist:
