Hyundai Santa Cruz: Driving Safety / Manual Speed Limit Assist (MSLA)
.jpg)

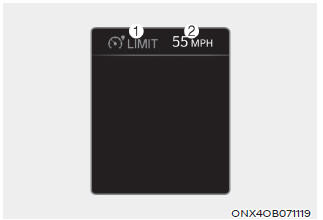

(1) Manual Speed Limit Assist enabled
indicator
(2) Set speed
You can set the speed limit when you do not want to drive over a specific speed.
If you drive over the preset speed limit, Manual Speed Limit Assist operates (set speed limit will blink and chime will sound) until the vehicle speed returns within the speed limit.
Safe Exit Warning Malfunction
and Limitations
Safe Exit Warning malfunction
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
system’ warning message appears on
the cluster for several seconds, and the
master ( ...
Manual Speed Limit Assist
Operation
To set speed limit
1. Press and hold Driving Assist
() button at the desired speed. The
Manual Speed Limit Assist enabled
() indicator will illuminate on
the cluster.
2. Push the + switch up or ...
