Hyundai Santa Cruz: LCD Display Messages for Vehicles Equipped with Smart Key / Low tire pressure

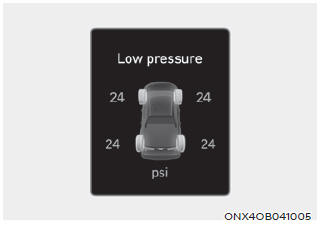

This warning message is displayed if the tire pressure is low. The corresponding tire on the vehicle will be illuminated.

    Sunroof open indicator
    This warning is displayed if you turn off the engine when the sunroof is open. Close the sunroof securely before leaving your vehicle. ...

    Lights
    This indicator displays which exterior light is selected using the lighting control. You can activate or deactivate Wiper/ Lights display function from the User Settings menu in the cluster LCD d ...
