Hyundai Santa Cruz: Instrument Cluster / LCD Display

LCD Display Control

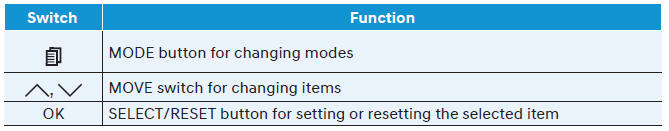

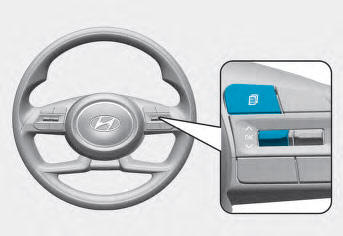

The LCD display modes can be changed by using the control buttons.

Information

When the infotainment system is applied, only the User’s Setting mode on the infotainment system is supported but the User’s Setting mode on the instrument cluster is not supported.

Other display Messages
Low washer fluid This message is displayed if the washer fluid level in the reservoir is nearly empty. Have the washer fluid reservoir refilled. Low fuel This message is displayed if the fuel tank ...

View Modes
Trip computer mode The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed. Turn By Turn (TBT) mode Turn ...
