Hyundai Santa Cruz: If you have a Flat Tire / Jack and Tools

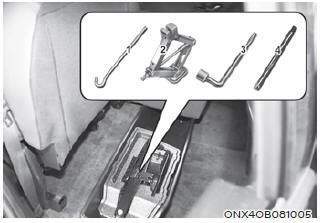

(1) Jack handle
(2) Jack
(3) Wheel nut wrench
(4) Socket

The jack and wheel lug wrench are storedin storage box under the right rear seat.

The jack and tools for changing the spare tire are located in a foam storage container located underneath the right rear seat inside the vehicle.

The jack and the tools provided are to assist you in changing a spare tire only. To prevent the jack and the tools from rattling around when driving your vehicle, always be sure to store it properly.

Follow the instructions in this manual and use extreme caution when changing a tire in order to reduce the possibility of personal injury.

Jacking instructions

The jack is provided for emergencytire changing only.

  • To prevent the jack from rattling while the vehicle is in motion, store it properly.
  • Follow jacking instructions to reduce the possibility of personal injury.
