Hyundai Santa Cruz: Mirrors / Side View Mirrors

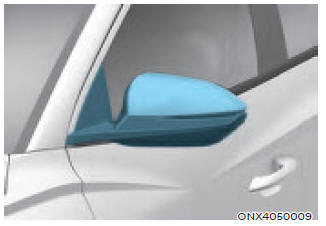

Your vehicle is equipped with both lefthand and right-hand side view mirrors. The mirrors can be adjusted remotely with the mirror adjustment control switch. The side view mirrors can be folded manually to help prevent damage when going through an automatic car wash or when passing through a narrow street.

The right side view mirror is convex. Objects seen in the mirror are closer than they appear.

Use the inside rear view mirror or look back directly to determine the actual distance of other vehicles prior to changing lanes.

Make sure to adjust the side view mirrors to your desired position before you begin driving.

WARNING

Do not adjust or fold the side view mirrors while driving. This may cause loss of vehicle control resulting in an accident.

NOTICE

  • Do not scrape ice off the mirror face; this may damage the surface of the glass.
  • If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved spray de-icer (not radiator antifreeze) spray, or a sponge or soft cloth with very warm water, or move the vehicle to a warm place and allow the ice to melt.
  • Do not clean the mirror with harsh abrasives, fuel or other petroleum based cleaning products.

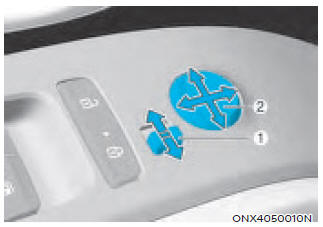

Adjusting the side view mirrors

1. Move the lever (1) either to the L (left side) or R (right side) to select the side view mirror you would like to adjust.

2. Use the mirror adjustment control (2) to position the selected mirror up, down, left or right.

3. After adjustment, move the lever (1) to the middle to prevent inadvertent adjustment.

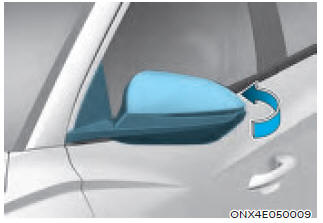

Folding the side view mirror

To fold the side view mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.
