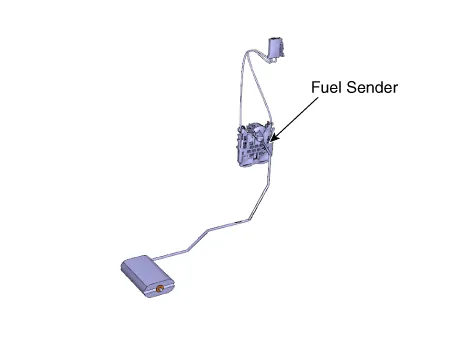

Hyundai Santa Cruz: Fuel Delivery System / Fuel Sender

- Removal [A type]

1.Remove the fuel pump.(Refer to Fuel System - "Fuel Pump")

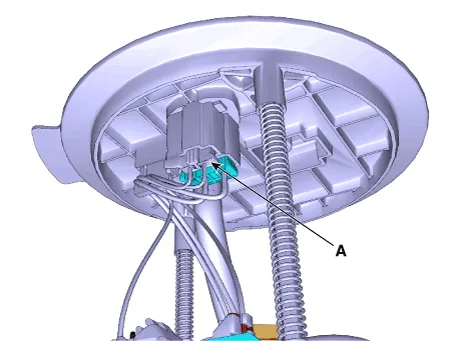

2.Disconnect the fuel sender connector (A).

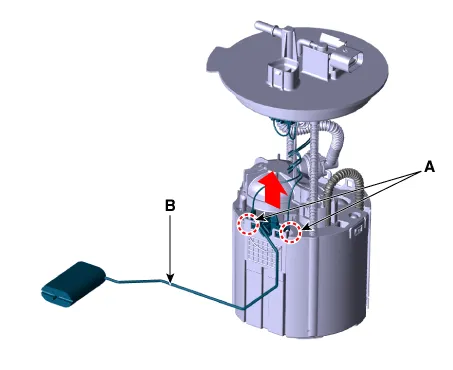

3.Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.

[B type]

1.Remove the fuel pump.(Refer to Fuel System - "Fuel Pump")

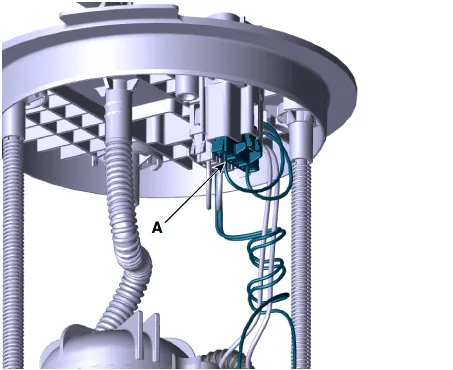

2.Disconnect the fuel sender connector (A).

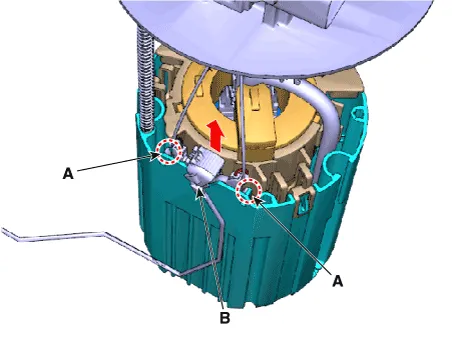

3.Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.

- Installation

1.Install in the reverse order of removal.
