Hyundai Santa Cruz: Front View Camera System / Front View Camera Unit

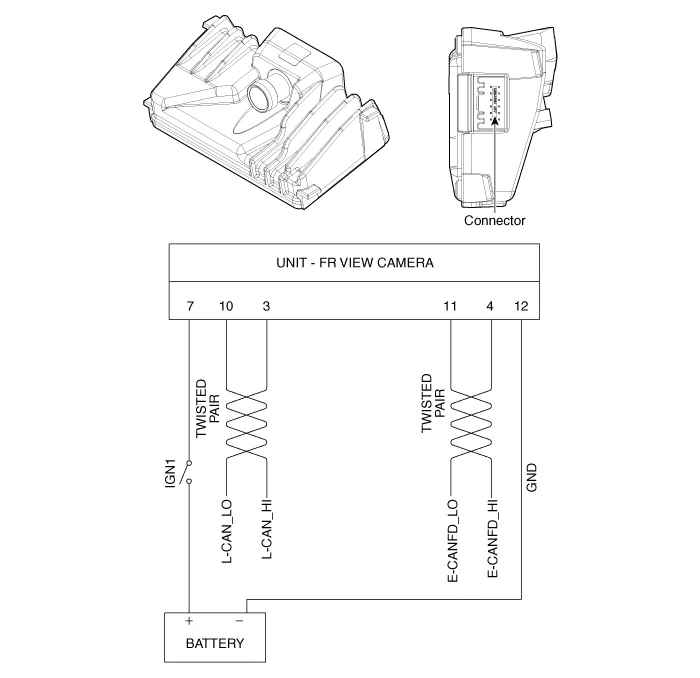

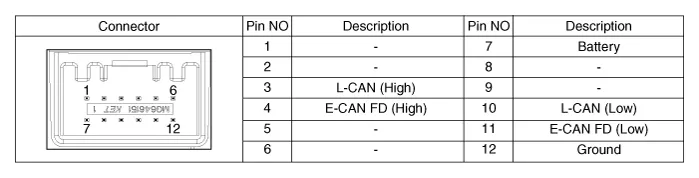

- Circuit Diagram

- Removal

1.Disconnect the negative (-) battery terminal.

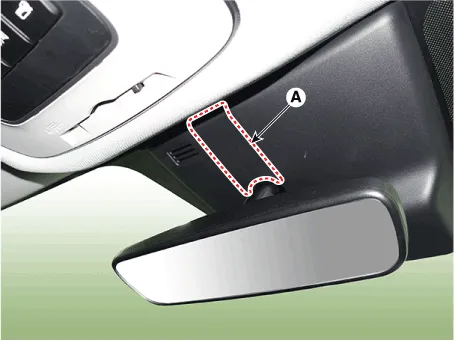

2.Remove the inside rear view mirror cover (A)

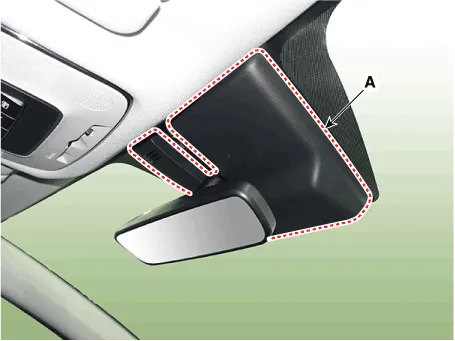

3.Remove the front view camera cover (A).

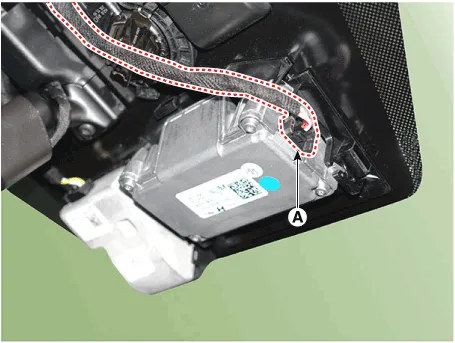

4.Disconnect the front view camera connector (A).

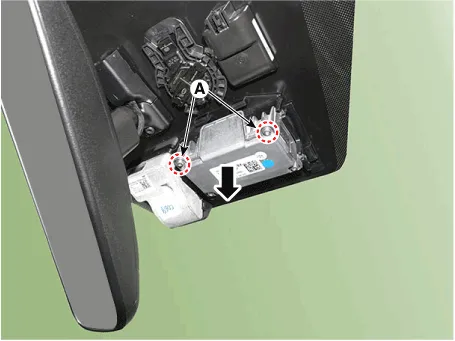

5.Separate the fixed points (A) of coupler and remove the front view camera.



• Be careful not to break the hook (A).

- Installation



• Perform the camera calibration in the following case.(Refer to Front View Camera System - "Repair Procedure")

– If the front view camera is replaced with a new one.

– If the front view camera is removed and mounted.

– If the front view camera coupler of the windshield glass is deformed.

– If the windshield glass is changed.

– When a failure code (System Out of Calibration) occur.

1.Install in the reverse order of removal.

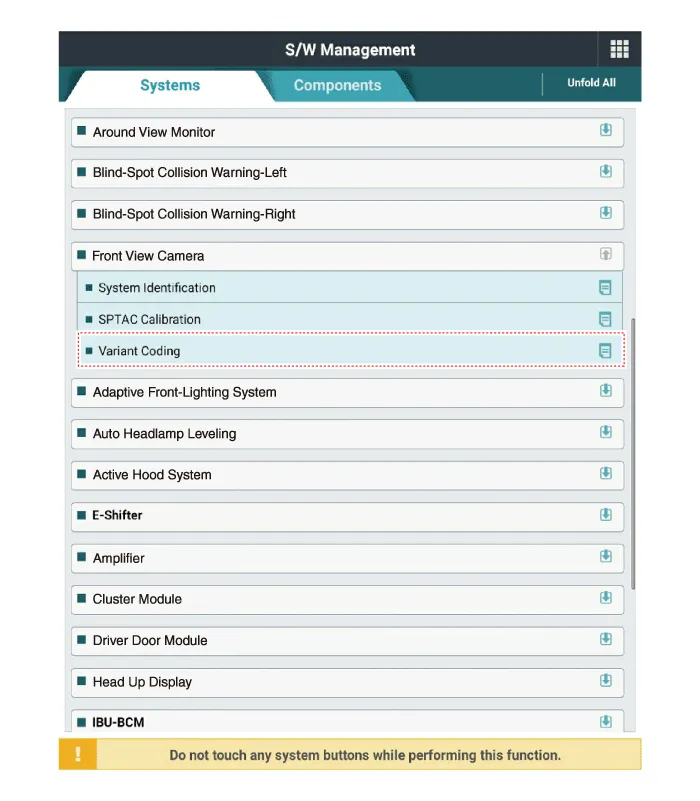

2.When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the Diagnostic Tools.

3.Perform the front view camera unit calibration.(Refer to Front View Camera System - "Repair Procedure")

    Repair procedures
    - Variant Coding     When you need variant coding: – Replace Front View Camera with a new one ※ EOL Variant Coding and calibration required for new replacement Front View Cam ...
