Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Exterior Overview

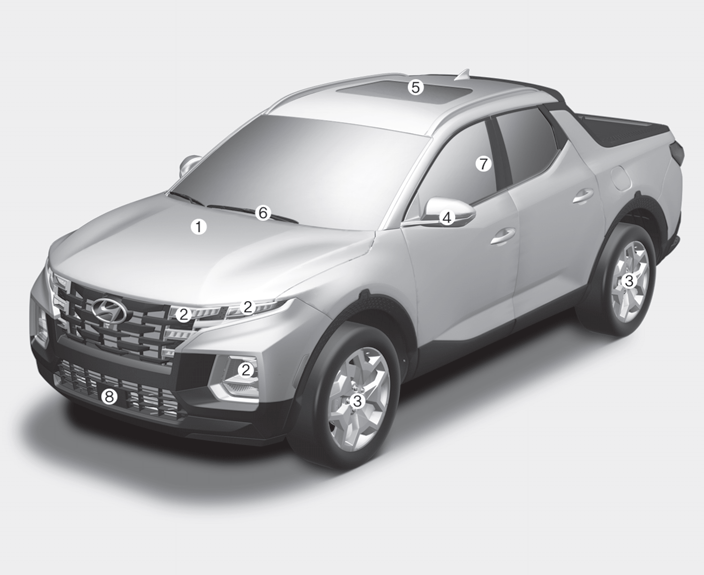

Front view

1. Hood
2. Front lamps
3. Tires and wheels
4. Side view mirror
5. Sunroof
6. Front windshield wiper blades
7. Windows
8. Front radar

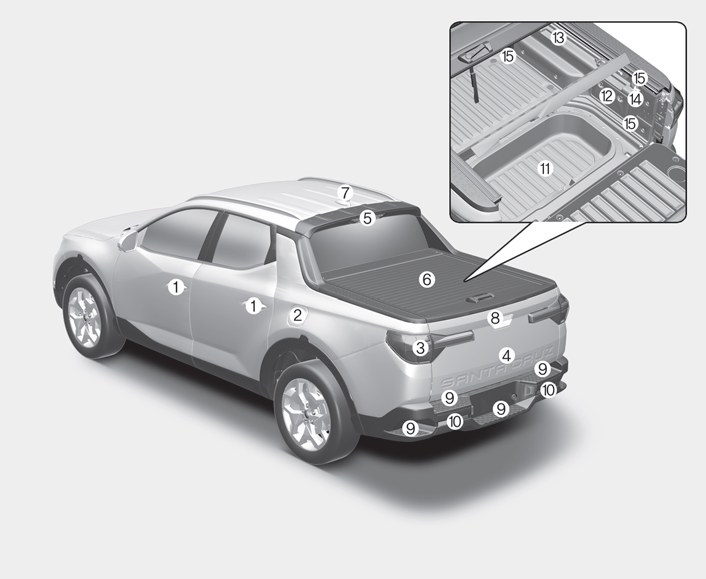

Rear view

1. Door handle
2. Fuel filler door
3. Rear combination lamp
4. Tailgate
5. High mounted stop lamp / Top mounted bed lamp
6. Tonneau cover
7. Antenna
8. Rear view camera
9. Rear bumper step
10. Reverse lamp
11. Underbed storage
12. Sidewall storage
13. Rail and cleat system
14. Fixed tie downs
15. D-ring tie downs

    Vehicle Information, Consumer Information and Reporting Safety Defects
    ...

    Interior Overview
    1. Inside door handle 2. Power window switches 3. Power window lock button 4. Outside rearview mirror control switch 5. Driver door lock switch 6. Instrument panel illumination control switch 7. B ...
