Hyundai Santa Cruz: Cylinder Block / Cylinder Block

- Disassembly



• Use fender covers to avoid damaging painted surfaces.

• Wait until the engine cools down to room temperature to avoid damaging the cylinder head before removing.

• When handling the metal gasket, be careful not to fold or damage the surface of the gasket.

• To avoid damage, disconnect the wiring connectors carefully while holding the connector portion.



• Mark all wirings and hoses to avoid misconnection.

• Turn the crankshaft pulley so that the piston of No.1 cylinder is positioned at the Top Dead Center (TDC).

1.Remove the engine and transaxle assembly from a vehicle.(Refer to Engine and Transmission Assembly - "Engine and Transaxle Assembly")

2.Remove the dual clutch transmission assembly.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission System")

3.Remove the fly wheel.(Refer to the Cylinder Block - "Fly Wheel")

4.Remove the rear oil seal. (Refer to the Cylinder Block - "Rear Oil Seal")

5.Install the engine to engine stand for disassembly.

6.Remove the cylinder head cover. (Refer to the Cylinder Head Assembly - "Cylinder Head Cover")

7.Remove the oil pan.(Refer to the Lubrication System - "Oil Pan")

8.Remove the timing chain cover.(Refer to the Timing System - “Timing Chain Cover”)

9.Remove the timing chain.(Refer to the Timing System - “Timing Chain”)

10.Remove the integrated thermal management module (ITM).(Refer to the Cooling System - "Integrated Thermal Management Module (ITM)")

11.Remove the intake/exhaust/CVVT and camshaft assembly.(Refer to the Cylinder Head Assembly - "CVVT & Camshaft")

12.Remove the intake manifold.(Refer to the Intake And Exhaust System - "Intake Manifold")

13.Remove the turbocharger & exhaust manifold.(Refer to the Intake And Exhaust System - "Turbocharger & Exhaust Manifold")

14.Remove the cylinder head.(Refer to the Cylinder Head Assembly - "Cylinder Head")

15.Remove the oil pump.(Refer to the Lubrication System - "Oil Pump")

16.Remove the balance shaft assembly.(Refer to the Lubrication System - "Balance Shaft Assembly Module")

17.Remove the water pump.(Refer to the Cooling System - "Water Pump")

18.Remove the alternator.(Refer to the Engine Electrical System - "Alternator")

19.Remove the oil filter & oil cooler.(Refer to the Lubrication System - "Oil Filter & Oil Cooler")

20.Remove the lower crankcase.(Refer to Cylinder Block - "Crankshaft")

21.Remove the piston and connecting rod assembly.(Refer to the Cylinder Block - "Piston and Connecting Rod")

22.Remove the crankshaft.(Refer to the Cylinder Block - "Crankshaft")

23.Remove the water jacket insert.(Refer to the Cylinder Block - "Water Jacket Insert")

24.Remove the knock sensor.(Refer to the Engine Control/Fuel System - "Knock Sensor (KS)")

25.Remove the crankshaft position sensor (CKPS).(Refer to the Engine Control/Fuel System - "Crankshaft Position Sensor (CKPS)")

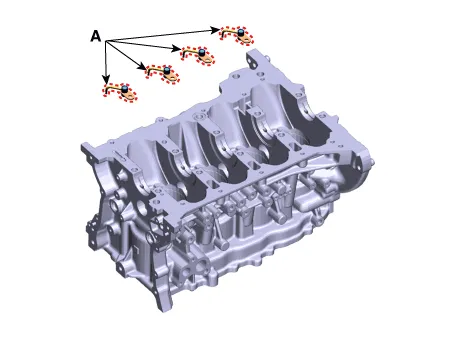

26.Remove the piston cooling oil jet (A).

- Inspection

1.Remove the gasket debris on the top of cylinder block using a scraper.

2.Clean the cylinder block thoroughly with a soft brush and solvent.

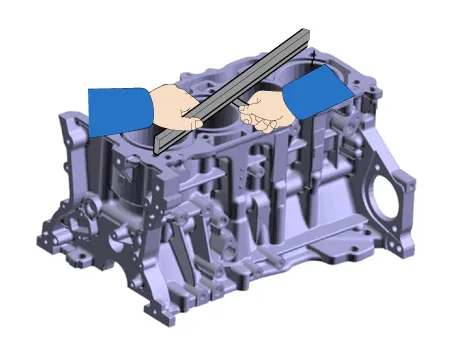

3.Measure the flatness of the top surface of cylinder block.Measure the flatness of the surface in contact with the cylinder head gasket using the precise square ruler and feeler gauge.

Flatness of cylinder block gasket surface :Less than 0.05 mm (0.0020 in) for total areaLess than 0.02 mm (0.0008 in) for a section of 100 mm x 100 mm (3.9370 in x 3.9370 in)

4.Visually inspect the inside of cylinder bore for scratches, etc., and replace the cylinder block if noticeable scratches are found.

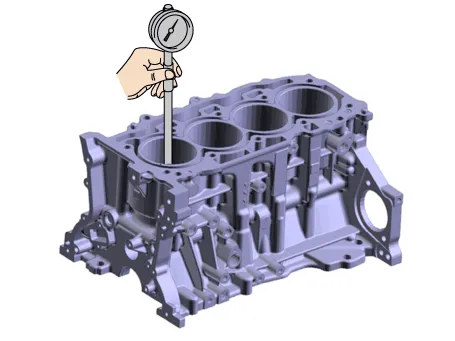

5.Measure the cylinder bore inner diameter in the axial and axial orthogonal directions using a cylinder bore gauge.

Cylinder bore diameter :88.50 - 88.53 mm (3.48425 - 3.48543 in.)

- Assembly



• Clean the each part before assembling.

• Apply new engine oil on the sliding/rotating surface before assembling parts.

• Always use the new gasket, O-ring and oil seal.

1.Install the piston cooling oil jet (A).

Tightening torque :8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)

2.Install the crankshaft.(Refer to the Cylinder Block - "Crankshaft")

3.Inspect the crankshaft end play.(Refer to the Cylinder Block - "Crankshaft")

4.Remove the lower crankcase and then inspect the oil clearance of crankshaft bearing. (Refer to the Cylinder Block - "Crankshaft")

5.Install the piston and connecting rod assembly.(Refer to the Cylinder Block - "Piston And Connecting Rod")

6.Inspect the oil clearance of connecting rod bearing cap.(Refer to the Cylinder Block - "Piston And Connecting Rod")

7.Inspect the connecting rod end play.(Refer to the Cylinder Block - "Piston And Connecting Rod")

8.Install in the reverse order of removal.



When replacing the cylinder block, select and install the appropriate crankshaft main bearings and pistons according to the crankshaft journal bore mark and the cylinder bore size mark on the cylinder block.

• Crankshaft main bearing selection(Refer to the Cylinder Block - "Crankshaft")

• Piston selection(Refer to the Cylinder Block - "Piston and Connecting Rod")
