Hyundai Santa Cruz: Rear Suspension System / Rear Stabilizer Bar

- Removal



• When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).(Refer to General Information - "Lift and Support Points")

1.Raise the vehicle, and make sure it is securely supported.

2.In the case of 4WD vehicle, remove the rear differential assembly.(Refer to Driveshaft and axle - "Rear Differential Carrier")

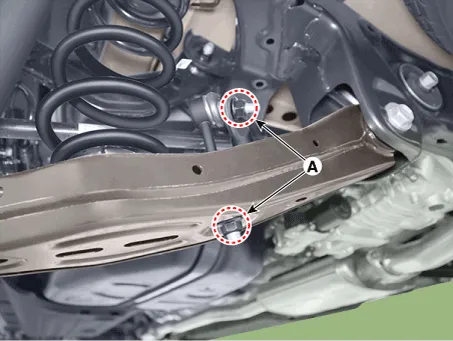

3.Remove the rear stabilizer link after loosening the mounting nut (A).

Tightening torque : 98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

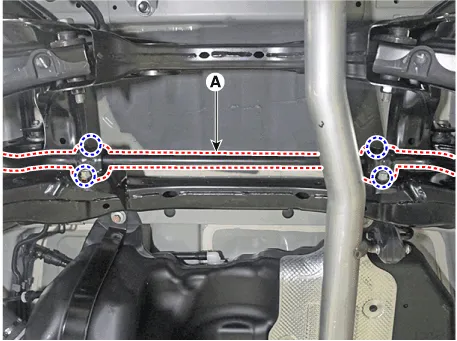

4.Remove the rear stabilizer bar (A) after loosening the mounting bolts.

Tightening torque :58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

- Inspection

1.Check the rear stabilizer bar for deformation.

2.Check the rear stabilizer link ball joint for damage.

- Installation

1.To install, reverse the removal procedures.

2.Check the alignment.(Refer to Suspension System - "Alignment")
