Hyundai Santa Cruz: Infotainment System / Bluetooth® Wireless Technology

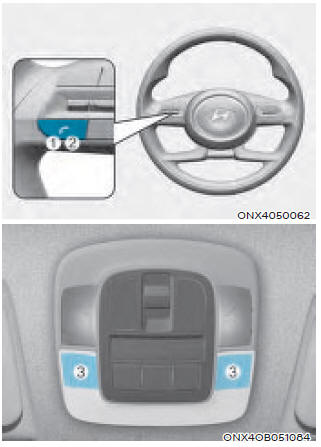

(1) Call / Answer button
(2) Call end button
(3) Microphone

CAUTION

To avoid driver distractions, do not excessively operate the device while driving the vehicle which may lead to an accident.
