Hyundai Santa Cruz: Bed Lid / Bed Cleat Assembly

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the C pillar inner garnish.(Refer to Body Side Molding - "C Pillar Garnish")

2.Remove the bed tonneau cover assembly.(Refer to Bed - "Bed Tonneau Cover Assembly")

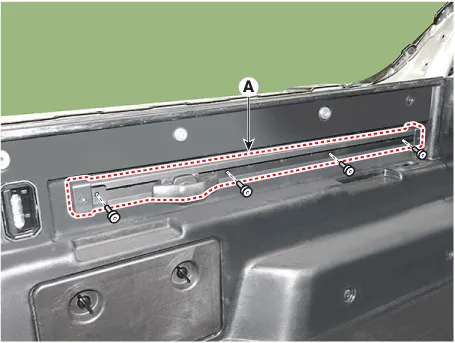

3.Loosen the mounting bolts, remove the rail&cleat assembly (A).

Tightening torque :24.5 - 36.2 N.m (2.5 - 3.7 kgf.m , 18.0 - 26.8 lb-ft)

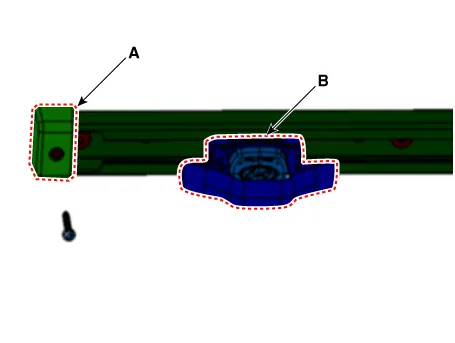

4.Loosen the mounting screw, remove the rear end cap (A) and then remove the cleat assembly (B).

5.To install, reverse removal procedure.
