Filter Replacement
The air cleaner filter can be cleaned for inspection using compressed air. Do not attempt to wash or to rinse it, as water will damage the filter. If soiled, the air cleaner filter must be replaced.

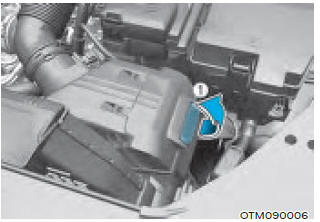

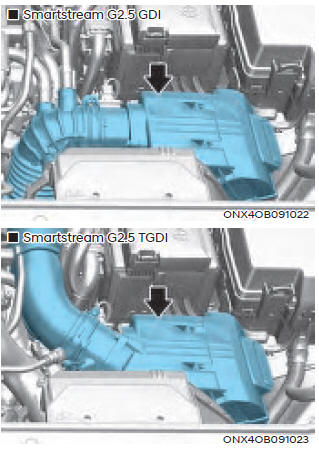

1. Pull up the air cleaner filter cover (1).

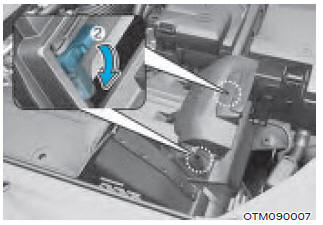

2. Pull down the lever to the UNLOCK (2) position.

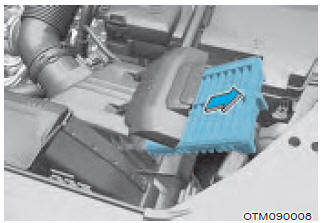

3. Replace the air cleaner filter.
4. Reassemble the air cleaner cover in the reverse order.
Information
If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals (refer to “Maintenance Under Severe Usage Conditions” in this chapter).
