Hyundai Santa Cruz: Rear Corner Radar System / Rear Corner Radar Unit

- Specifications

[BCW, BCA]

ItemsBlind-Spot Collision Warning (BCW)Blind-Spot Collision- Avoidance Assist (BCA)Blind-Spot Collision- Avoidance Assist (BCA)
※Parallel Exit
Rated voltageDC 12V
Operating voltage9V ~ 16V
Operating speed20 ㎞/h ~ 255 ㎞/h60 ㎞/h ~ 200 ㎞/h0 ㎞/h ~ 3 ㎞/h
Sensible distance70m60m
Frequency77 GHz
Numbers2 EA

[RCCW, RCCA]

ItemsRear Cross-Traffic Collision Warning System (RCCW)Rear Cross-Traffic Collision- Avoidance Assist (RCCA)
Rated voltageDC 12V
Operating voltage9V ~ 16V
Operating speed0 km/h ~ 8 km/h0.1 km/h ~ 8 km/h
Sensible distance25m
Curvature radius-
Frequency77 GHz
Numbers2 EA

[SEW]

ItemsSafe Exit Warning (SEW)
Rated voltageDC 12V
Operating voltage9V ~ 16V
Operating speed0 km/h ~ 3 km/h
Sensible distance30m
Curvature radius-
Frequency77 GHz
Numbers2 EA

- Connector and Terminal Function [Connector Funtion]

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the rear bumper assembly.(Refer to Body - "Rear Bumper Assembly")

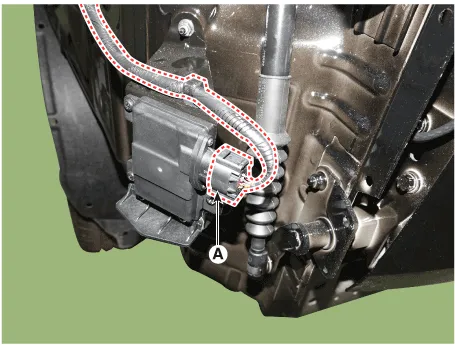

3.Disconnect the rear corner radar connector (A).

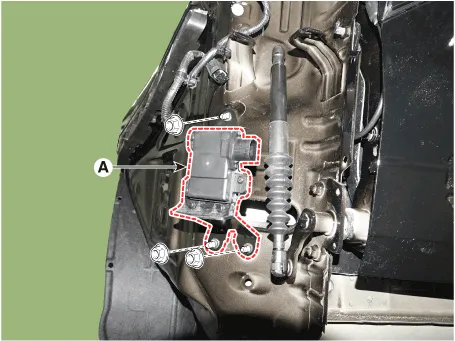

4.Loosen the mounting nuts and remove the rear corner radar unit (A)

Tightening torque : 9.0 - 10.5 N.m (0.92 - 1.07 kgf.m, 6.7 - 7.7 lb-ft)



• Be careful not to damage the bracket when removing the rear corner radar unit.

- Installation

1.Install in the reverse order of removal.

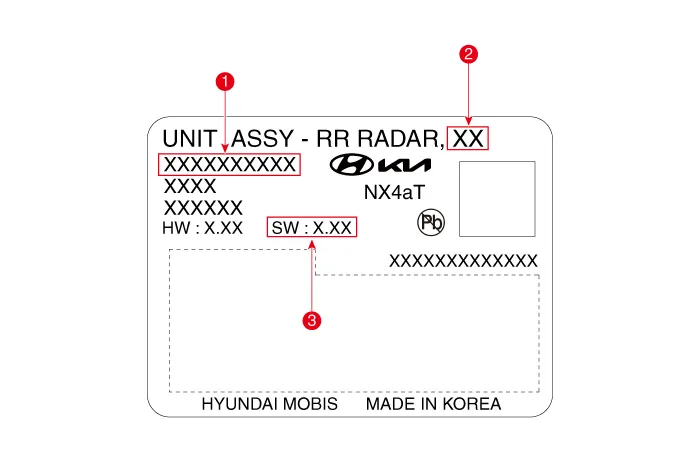

1)Parts number

2)RL (Rear-Left side), RR (Rear-Right side)

3)S/W Version information

2.Perform "Correcting the Rear Corner Radar Unit Angle" procedures.

3.Perform "Rear Corner Radar Calibration" procedures.

- Adjustment Correcting the Rear Corner Radar Unit Angle

1.After replacing the rear corner radar unit or bracket, with the bumper removed, use the rear corner radar unit correction tool set (special tool : 09985-3T500) to perform angle correction.



• Perform the task on a level place.

• Perform the task after checking the tire pressure.

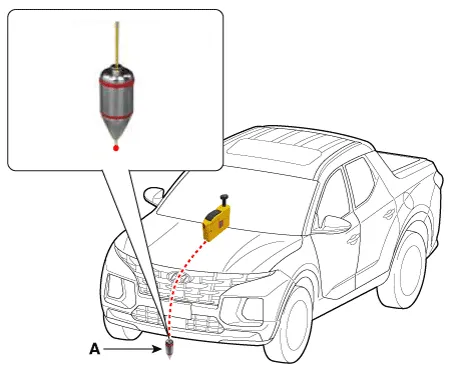

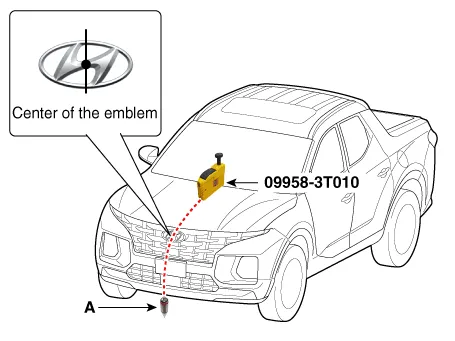

2.Attach a vertical plumb (special tool : 09958-3T010) on the hood, and lower the plumb (A) to the ground so that it passes through the center of the emblem.

3.Marking the center point below the plumb (A).

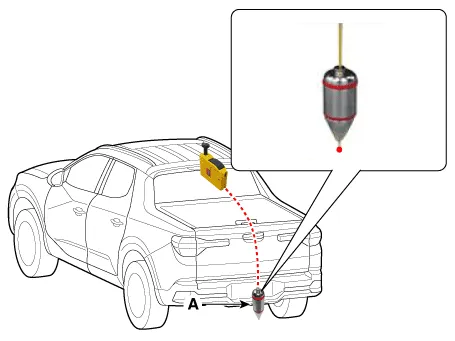

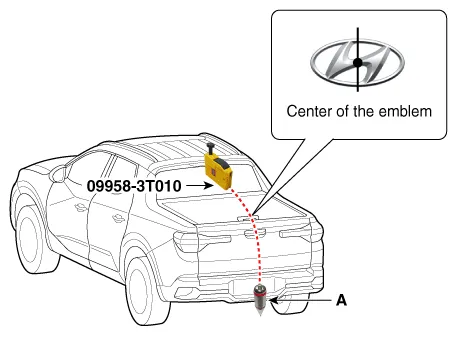

4.Attach a vertical plumb (special tool : 09958-3T010) on the trunk (or tailgate), and lower the plumb (A) to the ground so that it passes through the center of the emblem.

5.Marking the center point below the plumb (A).

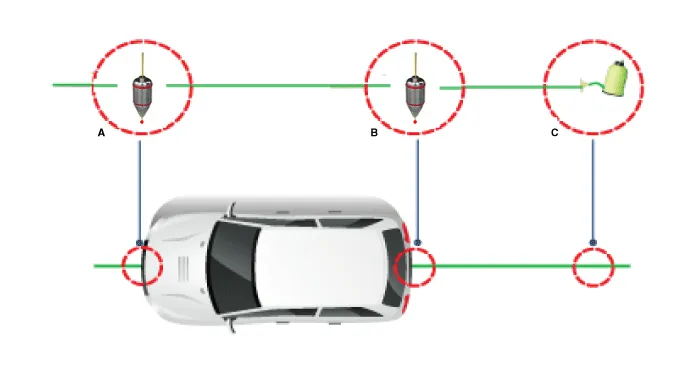

6.Marking the center of vehicle by a string.

1)Pass the string through the bottom of the vehicle from the rear of the vehicle to the front and fix the string to the center point (A) of the front of the vehicle.

2)Fix the string to the point (C) about 1.5 - 2m from the back of the vehicle so that it passes the rear center point (B).

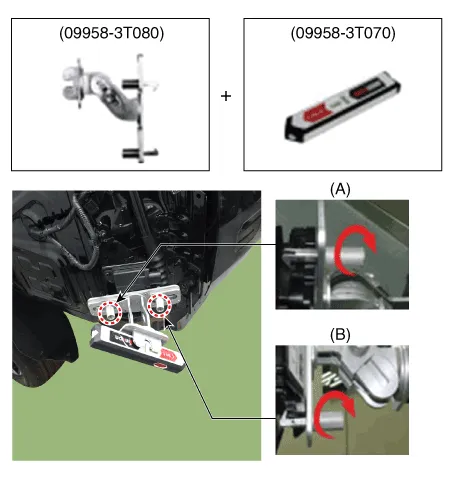

7.Mount rear corner radar fixing adaptor (special tool : 09958-3T080) on rear corner radar and fix the level laser (special tool : 09958-3T070).



• When with rear corner radar cover, remove the cover and then mount the fixing adapter (special tool: 09958-3T080).

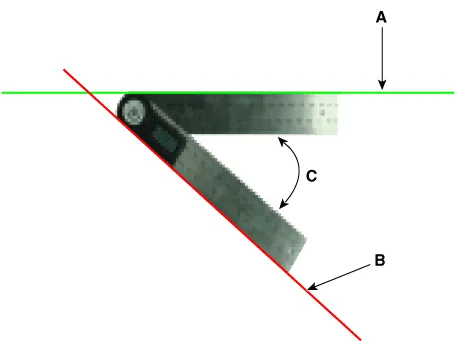

8.Measure the angle (C) between the center line (A) of the angle measuring plate and the horizontal laser beam (B) using a digital protractor (special tool : 09958-3T090).

Horizontal Angle (C): 41°

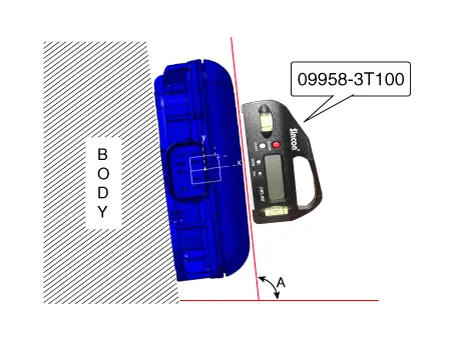

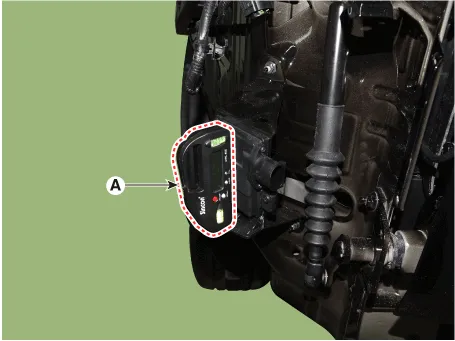

9.Use a digital inclinometer (special tool : 09958-3T100) to measure the vertical angle of rear corner radart.

Vertical Angle : 90°



• Digital Inclinometer (09958-3T100) Vertical measurement angle (A) : 90° ± 1.5°

10.Measure the horizontal and vertical angles of left and right rear corner radar. If the measured values deviate from the specified values, insert a washer between the bracket of rear corner radar.

Specified ValuesHorizontal Angle : 41°Vertical Angle : 90°

11.After checking and correcting rear corner radar angle, perform rear corner radar correction procedure.

Rear Corner Radar Calibration

1.Rear bumper accident vehicles and vehicles that replaced rear corner radar units must perform rear corner radar unit alignment using Diagnostic tool.

2.Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

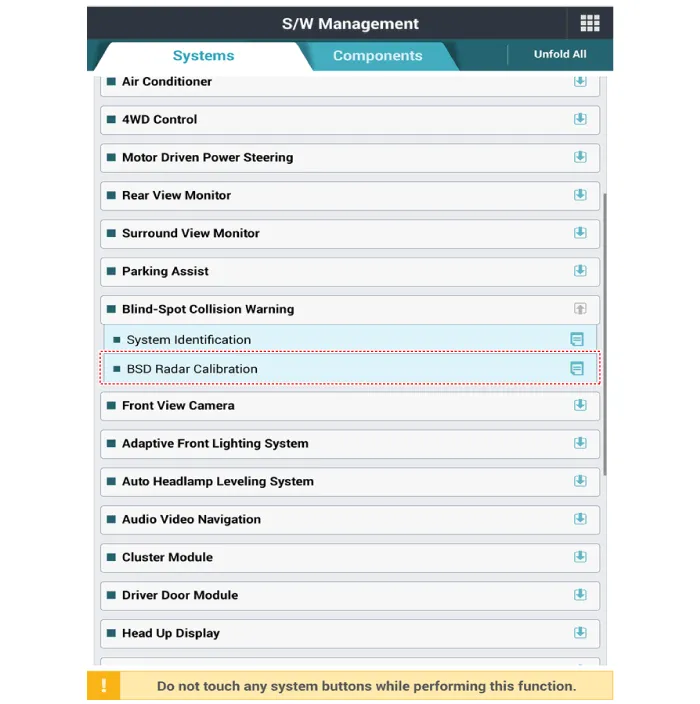

3.Select the 'S/W Management' and 'Car model'.

4.Select "Blind -Spot Collision Warning" and "Rear Corner Radar Calibration".

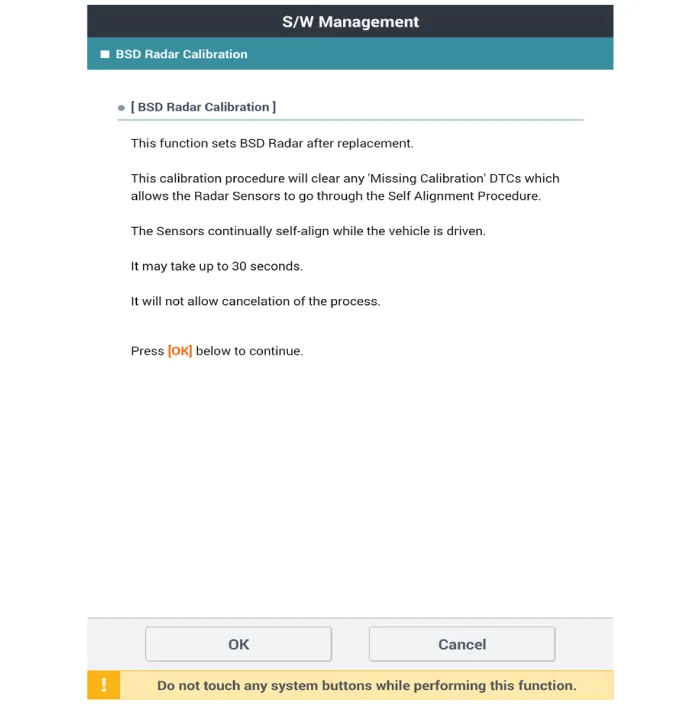

5.Perform the "Rear Corner Radar Calibration" procedure according to the Diagnostic tool screen message.
