Hyundai Santa Cruz: Infotainment System / USB Port

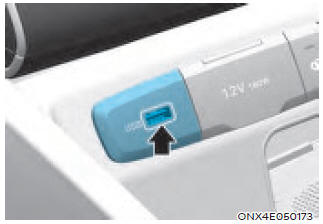

You can use an USB cable to connect audio devices to the vehicle USB port.

Information

When using a portable audio device connected to the power outlet, noise may occur during playback. If this happens, use the portable audio device’s power source.
