Hyundai Santa Cruz: Rear Suspension System / Trailing Arm

- Removal



• When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).(Refer to General Information - "Lift and Support Points")

1.Loosen the rear wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

2.Remove the rear wheel and tire.(Refer to Tires/Wheels - "Wheel")

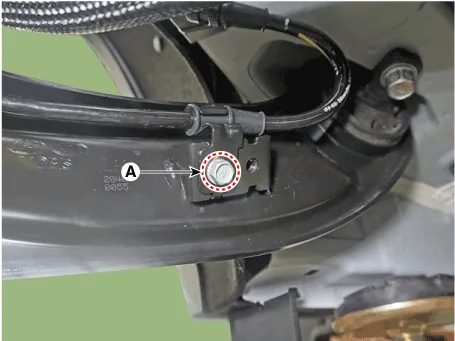

3.Loosen the wheel speed sensor cable bracket mounting nuts (A).

Tightening torque :19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

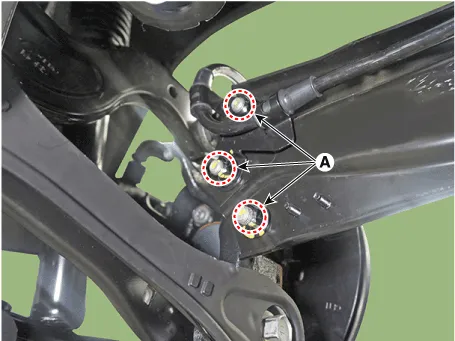

4.Separate the trailing arm after loosening the mounting nuts (A).

Tightening torque :117.6 - 137.2 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.2 lb-ft)

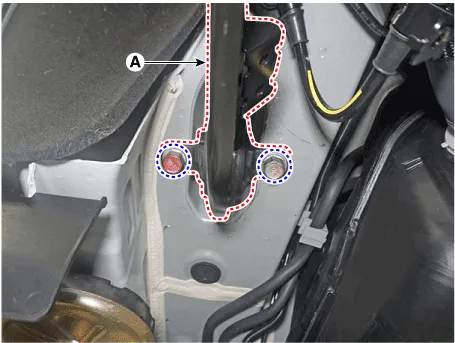

5.Remove the trailing arm (A) after loosening the mounting bolts.

Tightening torque :98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

- Inspection

1.Check the bushing for wear and deterioration.

2.Check for all bolts and nuts.

- Installation

1.To install, reverse the removal procedures.

2.Check the alignment.(Refer to Suspension System - "Alignment")
