Hyundai Santa Cruz: Manual Heating and Air Conditioning / Temperature control

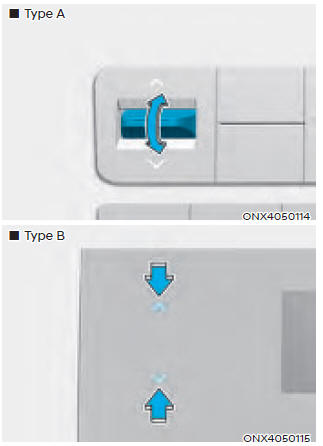

The temperature setting will increase when you toggle up or touch the UP arrow on the touchscreen (if equipped).

The temperature setting will decrease when you toggle down or touch the DOWN arrow on the touchscreen (if equipped).

Adjusting the temperature equally

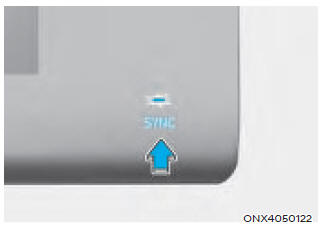

Press the SYNC button (indicator light ON) to adjust the driver and passenger side and the rear seat’s temperature equally.

Adjusting the temperature and individually

Press the SYNC button (indicator light OFF) again to adjust the driver and passenger side and the rear seat’s temperature individually.

Temperature conversion

If the battery has been discharged or disconnected, the temperature mode display will reset to Fahrenheit.

To change the temperature unit from °C to °F or °F to °C :

- Instrument cluster or infotainment system screen

The temperature unit on both the cluster LCD display and the climate control screen will change.

    Mode selection (12)
    The mode selection button controls the direction of the air flow through the ventilation system. The air flow outlet direction is cycled as follows: Air flow is directed toward the upper body ...

    Air intake control
    The air intake control button is used to select either Fresh mode (outside air) or Recirculation mode (cabin air). Recirculated air position With the recirculated air position selected, air from t ...
