Hyundai Santa Cruz: Surround View Monitor (SVM) / Surround View Monitor (SVM) Camera

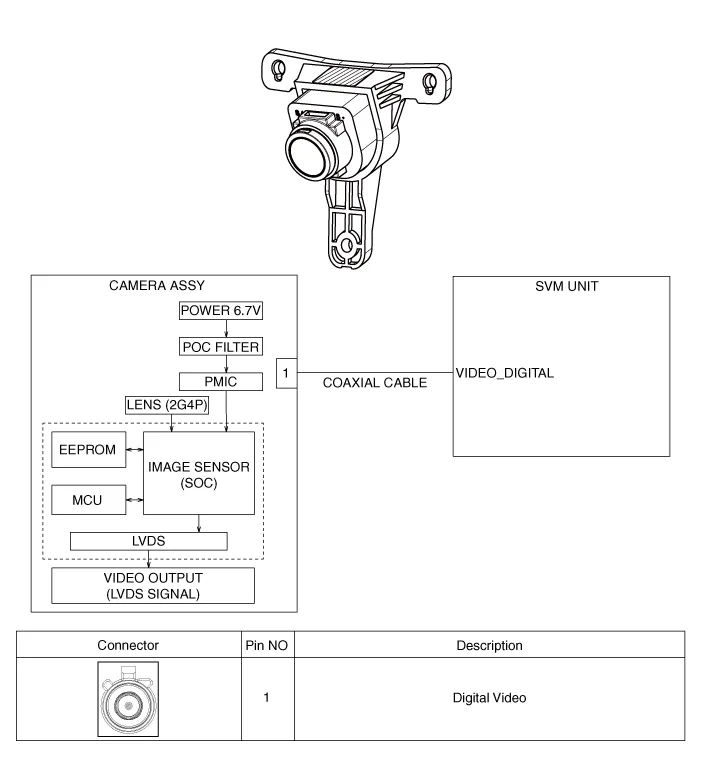

- Components [Ultra Optical Camera - RH/LH]

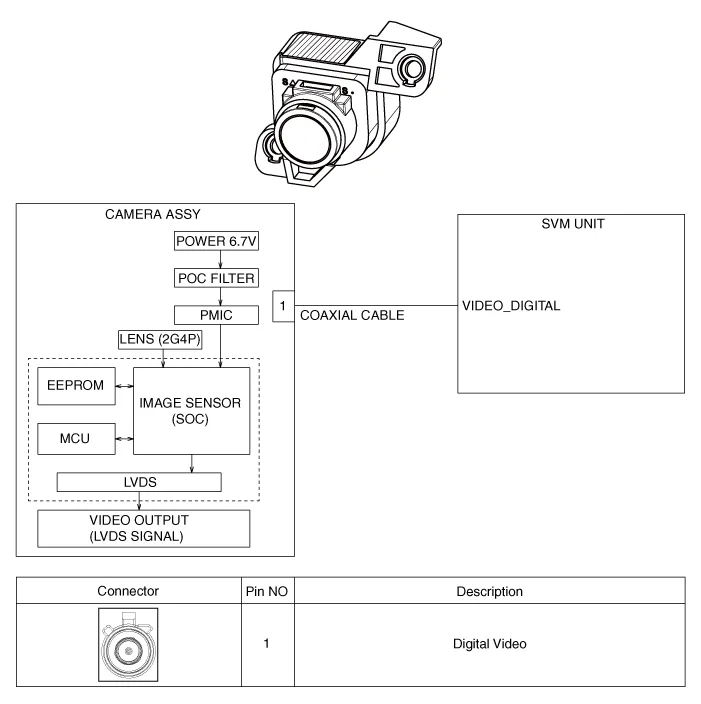

[Ultra Optical Camera - Front]

[Ultra Optical Camera - Rear]

- Removal

• In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.

SVM Front Camera

1.Disconnect the negative (-) battery terminal.

2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly")

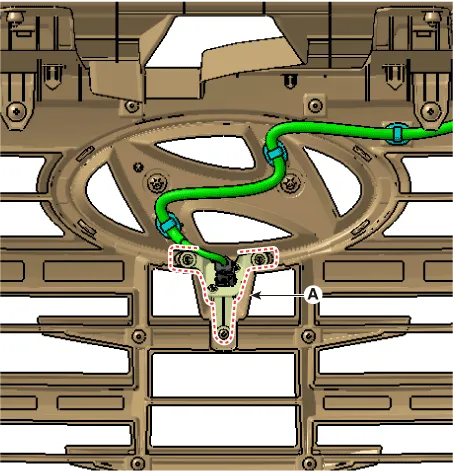

3.Disconnect the connector, loosen the mounting screws and remove the SVM front camera (A).

SVM Rear Camera

1.Disconnect the negative (-) battery terminal.

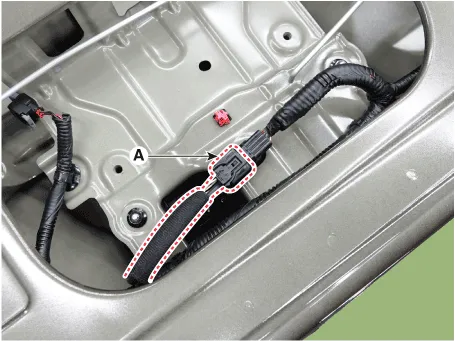

2.Disconnect the liftgate handle connector (A).

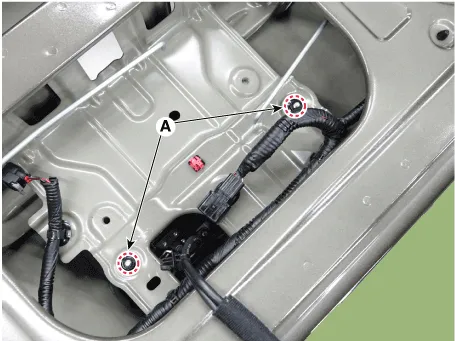

3.Loosen the mounting nuts, remove the liftgate handle assembly (A).

Tightening torque :19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

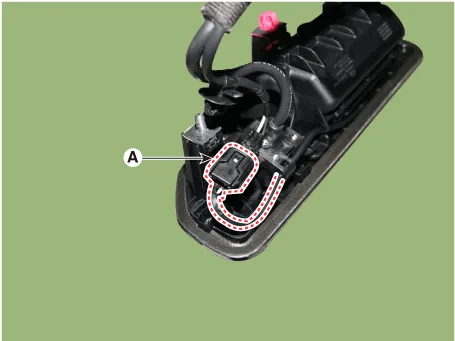

4.Disconnect the liftgate handle connector (A).

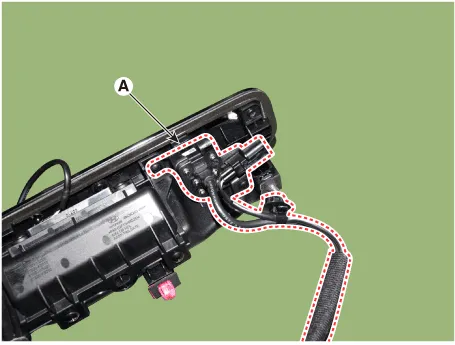

5.Loosen the mounting screws and remove the rear view camera (A).

SVM Left/ Right Camera

1.Disconnect the negative (-) battery terminal.

2.Remove the outside mirror cover.(Refer to Body Electrical System - "Power Door Mirror Actuator")

3.Loosen the mounting screws and remove the SVM left/right camera (A).

- Installation

1.To install, reverse the removal procedure.
