Hyundai Santa Cruz: Surround View Monitor (SVM) / Surround View Monitor Operation

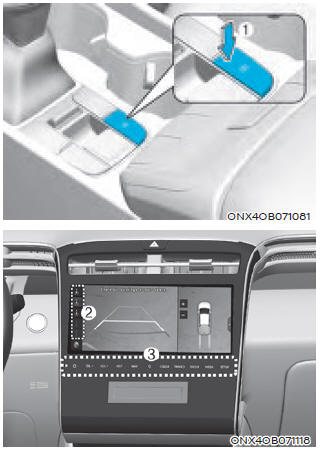

Operating button

  • Press the Parking/View button (1) to turn on Surround View Monitor. Press the button again to turn off the function.
  • Other view modes can be selected by touching the view icons (2) on the Surround View Monitor screen.
  • When one of the infotainment system button (3) is pressed without the gear in R (Reverse), Surround View Monitor turns off.

Front view

The front image is displayed on the screen when the gear is in N (Neutral) or D (Drive) to assist in parking. The front view has a top view/front view/side view.

Operating conditions

  • When the gear is shifted from R (Reverse) to N (Neutral) or D (Drive), the last set mode of front view function will be selected.
  • Front view function will operate when the following conditions are satisfied: - While the infotainment system screen is being displayed, press the Parking/View button (1) briefly when the gear is in D (Drive) or N (Neutral) and vehicle speed is below 6 mph (10 km/h).
  • Surround View Monitor Auto On function will operate when the following conditions are satisfied: - With 'Driver Assistance>Parking Safety>Surround View Monitor Auto On' selected from the Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive).

Off conditions

  • Press the Parking/View button (1) again, the image turns off.
  • When vehicle speed is above 6 mph (10 km/h) with the gear in D (Drive), Surround View Monitor turns off and the screen will change back to the previous infotainment system screen. Although you drive below 6 mph (10 km/h) again, Surround View Monitor will not turn on.
  • Press one of the infotainment system button (3), the screen will change to the infotainment system screen.
  • Shift the gear to P (Park), the image turns off.

Rear view

The rear image is displayed on the screen when the gear is in R (Revers) or P (Park) to assist in parking. The rear view has a top view/rear view/side view.

Operating conditions

  • Shift the gear to R (Reverse), the image appears on the screen.
  • Press the Parking/View button (1) while the gear is in P (Park), the image appears on the screen.

Off conditions

  • The image cannot be turned off when the gear is in R (Reverse).
  • Shift the gear from R (Reverse) to P (Park), the image turns off.
  • Press the Parking/View button (1) again while the gear is in P (Park) with the image on the screen.
    Surround View Monitor Settings
    Camera settings You can change Surround View Monitor ‘Display Contents’ or ‘Display Settings’ by touching the setup icon ( ) on the screen while Surround View Monitor is operating, ...

    Surround View Monitor Malfunction and Limitations
    Surround View Monitor malfunction When Surround View Monitor is not working properly, or the screen flickers, or the camera image does not display properly, have the vehicle inspected by an author ...
