Hyundai Santa Cruz: Sun Roof / Sun Roof Switch

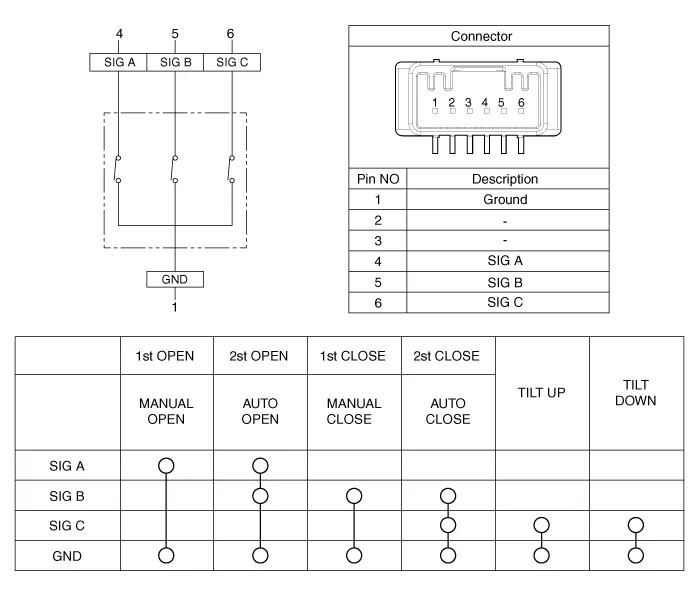

- Circuit Diagram

- Removal

1.Disconnect the negative (-) battery terminal.

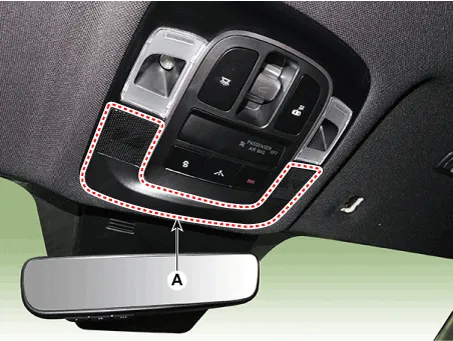

2.Remove the overhead console cover (A).

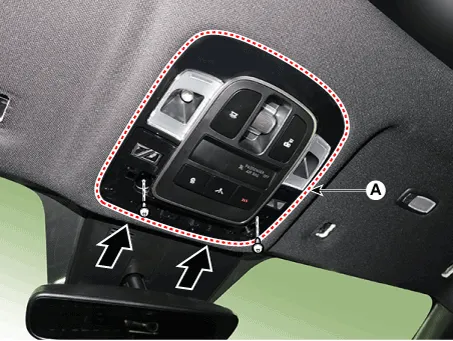

3.Loosen the mounting screws and remove the overhead console (A).

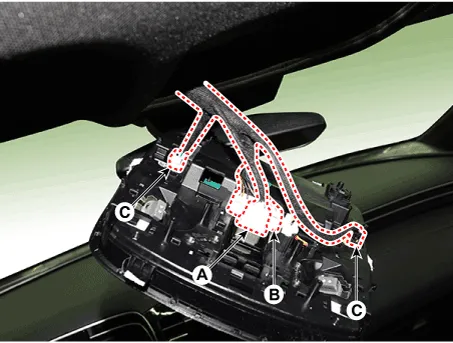

4.Disconnect the connectors and remove the overhead console.A : Sun roof connectorB : Main connectorC : MIC connector

- Installation

1.Connect the connectors and install the overhead console.

2.Connect the negative (-) battery terminal.

    Schematic Diagrams
    - Circuit Diagram ...

    Sun Roof Motor
    - Replacement 1.Disconnect the negative (-) battery terminal. 2.Remove the roof trim assembly.(Refer to Body - "Roof Trim Assembly") 3.Disconnect the sun roof motor connector (A). 4.Loosen t ...
