Hyundai Santa Cruz: Storage Compartment / Storage Box Under the Rear Seat

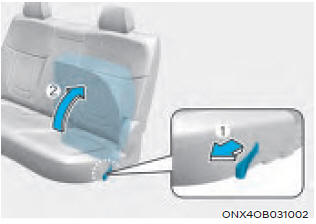

Lift and fold up the rear seat.

WARNING

Do not sit on the storage box. It may damage the storage box or cause serious injury in the event of sudden braking collision.
