Hyundai Santa Cruz: Rear View Monitor (RVM) / Schematic Diagrams

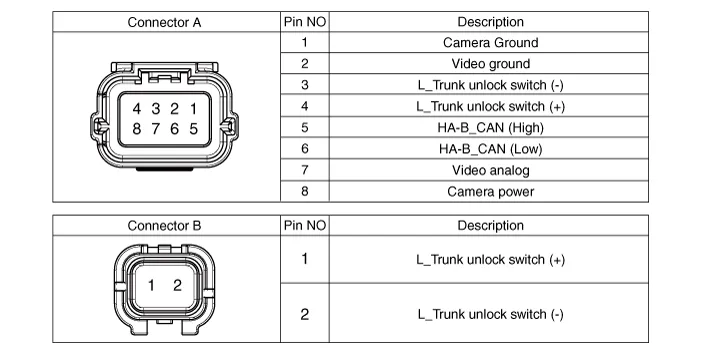

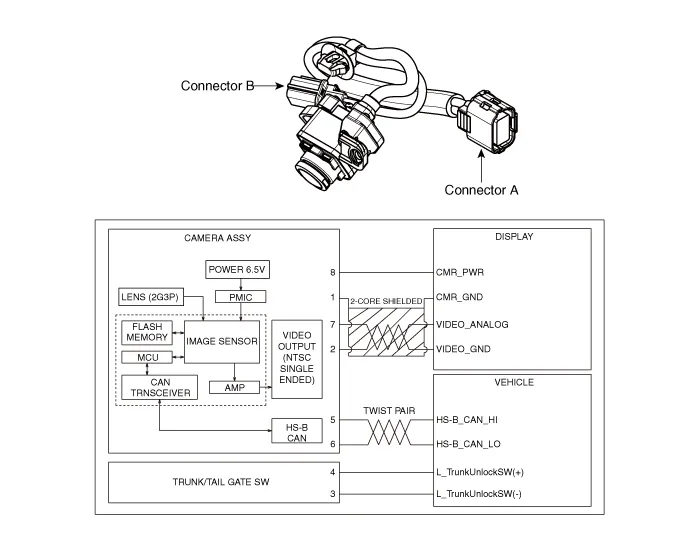

- Circuit Diagram

    Components and Components Location
    - Component Location 1. Front monitor assembly 2. Rear view camera ...

    Repair procedures
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the liftgate bed trim.(Refer to Body - "Liftgate Trim") 3.Disconnect the liftgate handle connector (A). 4.Loosen the mounti ...
