Hyundai Santa Cruz: Cruise Control System (CC) / Schematic Diagrams

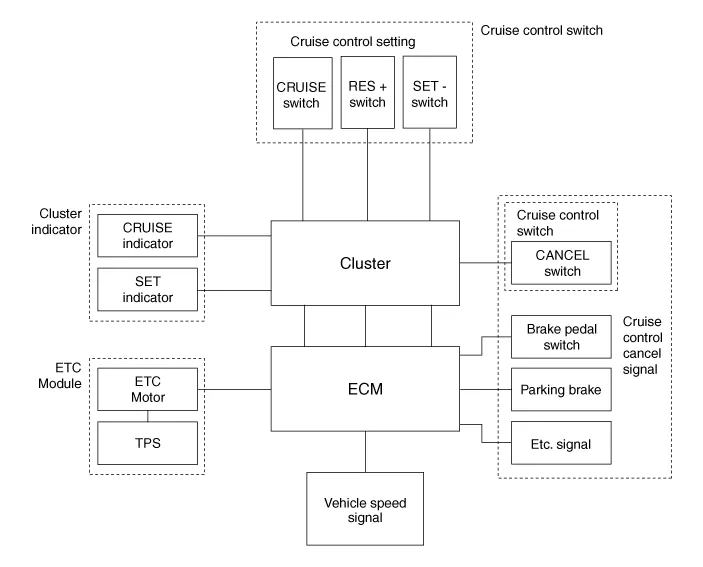

- System Block Diagram

Component Parts And Function Outline
Component partFunction
Vehicle-speed sensor, ESP/ABS Control ModuleConverts vehicle speed to pulse.
ECMReceives signals from sensor and control switches.
Cruise control indicatorIlluminate when CRUISE main switch is ON (Built into cluster)
Cruise Control switchesCRUISE switchSwitch for automatic speed control power supply.
Resume/Accel switch (RES +)Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch)
Set/Coast switch (RES -)
Cancel switchesCancel switchSends cancel signals to ECM.
Brake-pedal switch
Transaxle range switch (A/T)
ETC MotorRegulates the throttle valve to the set opening by ECM.

* ETC Motor : Electronic Throttle Control Motor
