Hyundai Santa Cruz: Evaporative Emission Control System / Schematic Diagrams

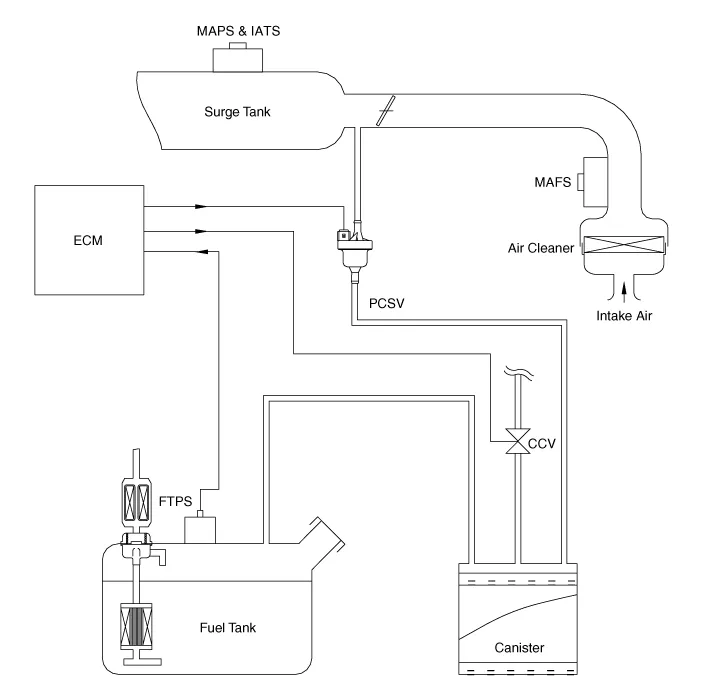

- Schematic Diagram

• MAPS : Manifold Absolute Pressure Sensor

• PCSV : Purge Control Solenoid Valve

• MAFS : Mass Air Flow Sensor

• FTPS : Fuel Tank Pressure Sensor

• CCV : Canister Close Valve

    Description and Operation
    - Description Evaporative Emission Control System prevents fuel vapor stored in fuel tank from vaporizing into the atmosphere. When the fuel evaporates in the fuel tank, the vapor passes throug ...

    Repair procedures
    - Inspection [Evaporate Leakage Test] 1.Select "Evap. Leakage Test". 2.The test shall be conducted in accordance with diagnostic tool instructions.     Evap. Leakage Test Enable C ...
