Hyundai Santa Cruz: Air Conditioning System / Receiver-Drier

- Replacement

1.Remove the condensor.(Refer to Air conditioning System - "Condensor")

2.Using a Lwrench, remove the cap (A) on the bottom of the receiver-drier.

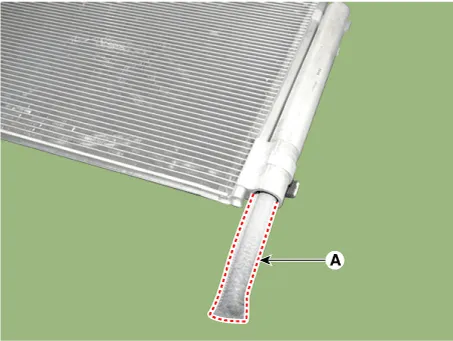

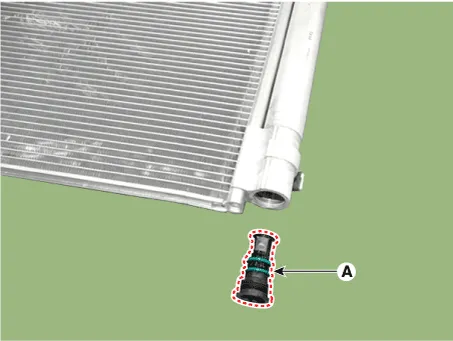

3.Remove the receiver-drier (A) from condenser using a long nose plier. Check for crumbled receiver-drier and clogged bottom cap filter.

4. Install in the reverse order of removal.

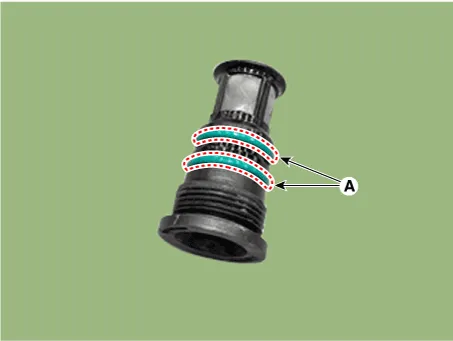

• Always replace the receiver-drier and bottom cap at the same time.

• Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a or R-1234yf to avoid leakage.

• Be careful not to damage the radiator and condenser fins when installing the condenser.

• Charge the system, and test its performance.
