- Inspection Diagnosis with diagnostic tool

1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).The diagnostic system (diagnostic tool) provides the following information.

(1)Fault Code Searching : Checking failure and code number (DTC)

(2)Data Analysis : Checking the system input/output data state

(3)Actuation test : Checking the system operation condition

(4)S/W Management : Controlling other features including system option setting and zero point adjustment

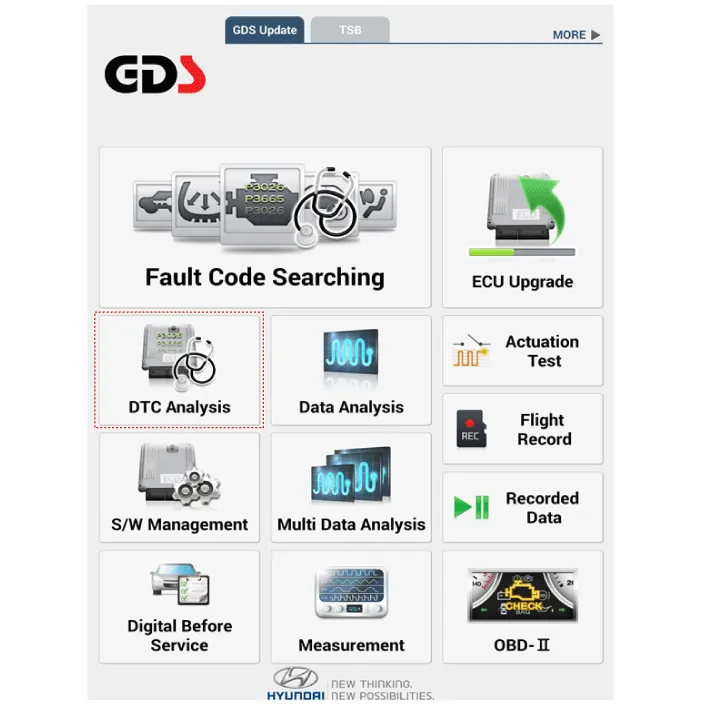

2.If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

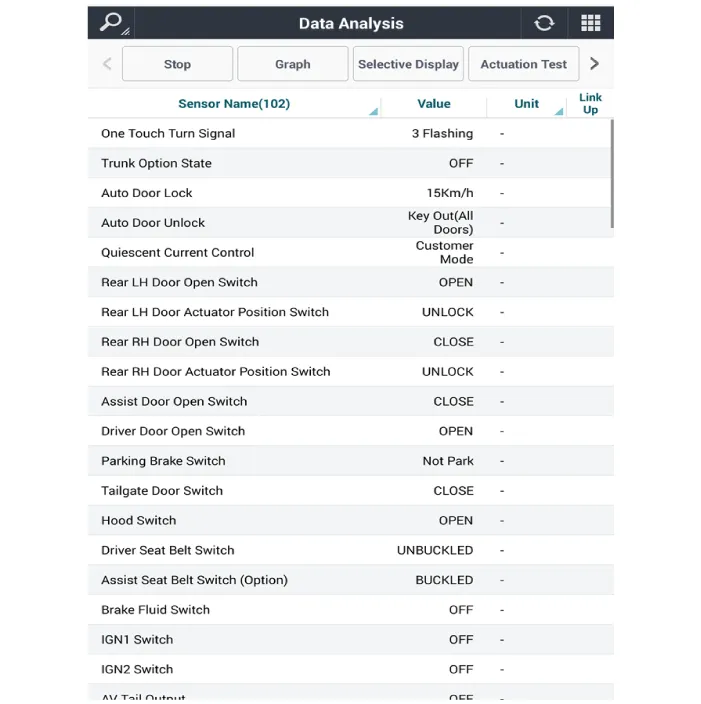

3.Select the 'Data Analysis' and 'Car model'.

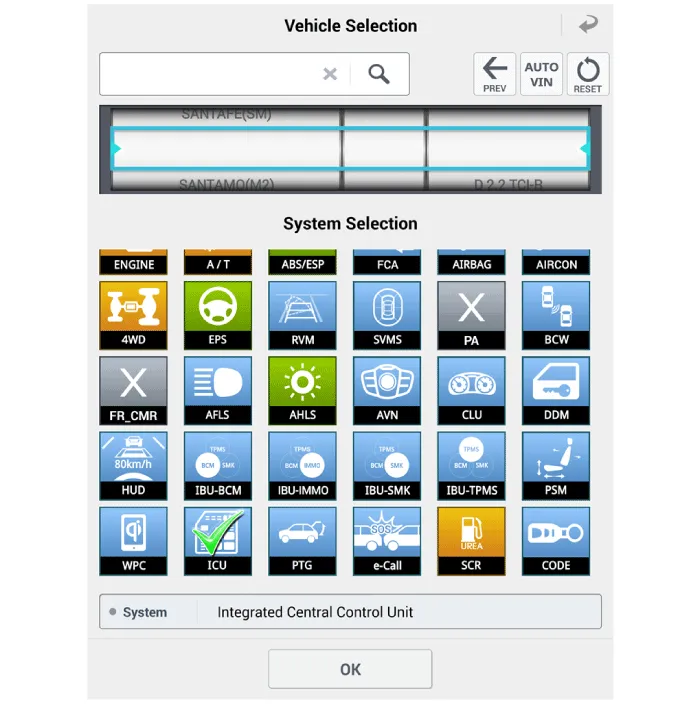

4.Select the 'IBU_BCM' to search the current state of the input/output data.

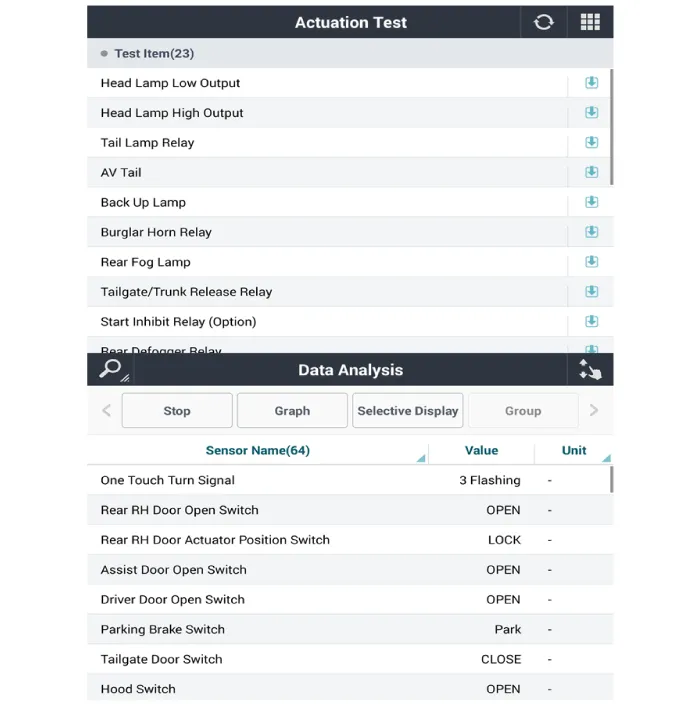

5.To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

- Removal

1.isconnect the negative (-) battery terminal.

2.Remove the heater and A/C controll unit.(Refer to Heating,Ventilation, Air Conditioning - "Heater & A/C Control Unit (Manual)")(Refer to Heating, Ventilation, Air conditioning - "Heater & A/C Control Unit (DATC)")

- Installation

1.Install the heater and A/C control unit.

2.Connect the negative (-) battery terminal.

Rear Glass Defogger Printed Heater

- Inspection Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line. Apply finger pressure on the tin foil, moving the tin foil along the ...
