Hyundai Santa Cruz: Rear Door / Rear Door Outside Handle

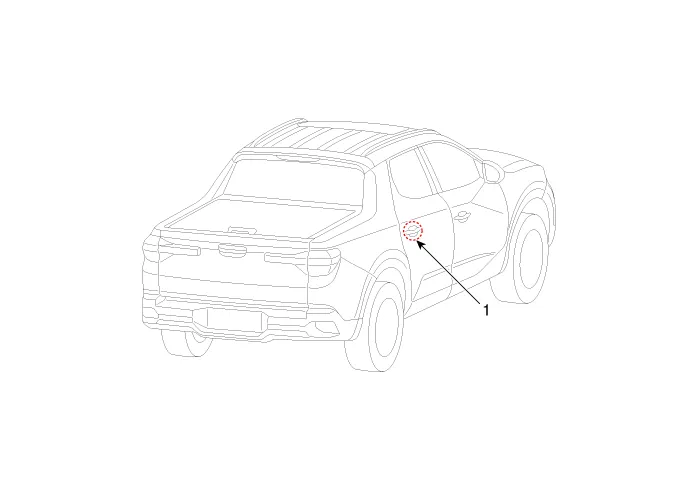

- Components Location

1. Rear door outside handle


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

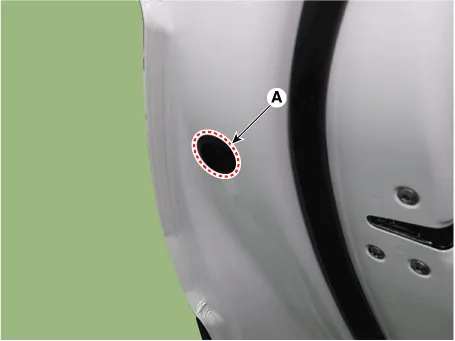

1.Remove the plug hole (A).

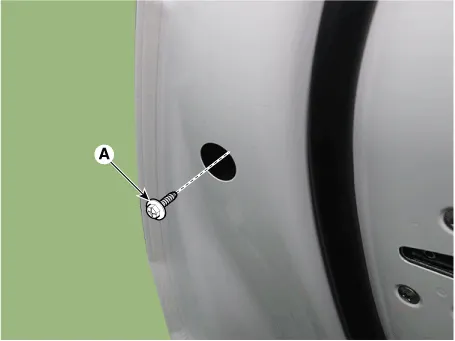

2.Loosen the rear door outside handle mounting bolt (A).

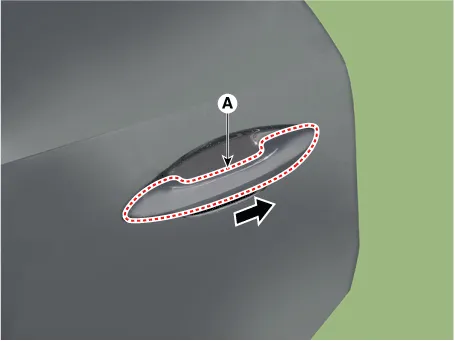

3.Remove the rear door outside handle (A) by sliding it forward.

4.To install, reverse removal procedure.

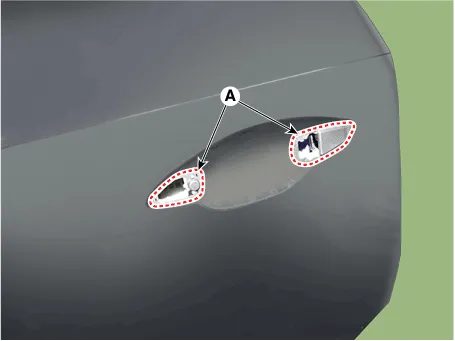

• Be sure to install the outside handle pad (A) between the outside handle and the door panel.

• Make sure the door locks / unlocks and opens / closes properly.

• Make sure the connector is connected properly.
