Hyundai Santa Cruz: Exterior Features / Rear Bumper Steps

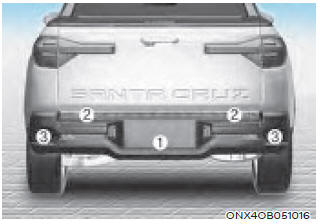

1. Center Step
2. Top Step
3. Corner Step

Use the rear bumper steps shown for easier access to the pickup bed.

NOTICE

To prevent damage to the rear bumper steps:

  • Do not apply more than 330.7lbs. (150 kgf) of weight onto each step.
  • Do not jump or bounce on the steps of the bumper.
  • Do not allow more than one person to stand on the rear bumper at a time.

CAUTION

Do not allow others to step or ride on the rear bumper while vehicle is in motion.

    Removing the tailgate
    [A] : rear camera connector (If equipped) 1. Disconnect connectors located on the bottom side of the tailgate. 2. Disconnect both support cable. And tilt the tailgate to roughly 45 degrees from t ...

    Fuel Filler Door
    Opening the fuel filler door 1. Turn the engine off. 2. Ensure Driver’s door is unlocked. 3. Press the rear center edge of the fuel filler door. 4. Pull the fuel filler door (1) outward to acces ...
