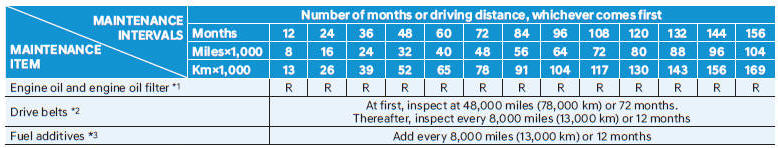

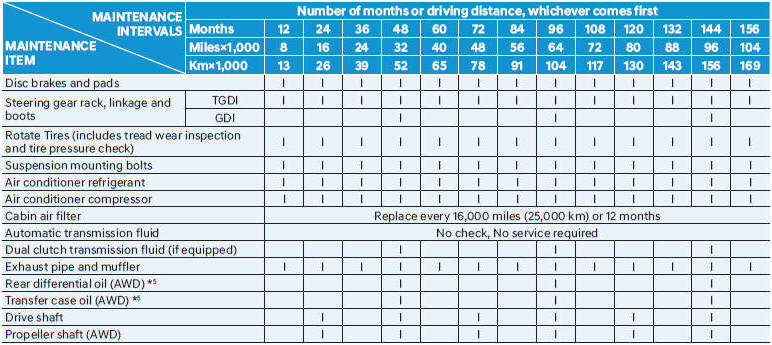

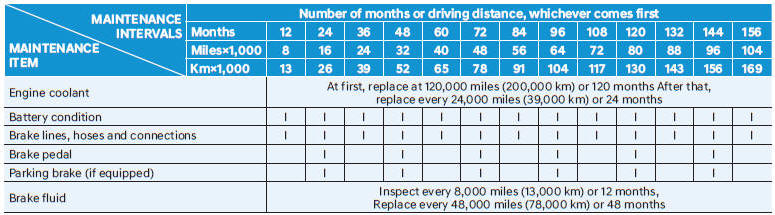

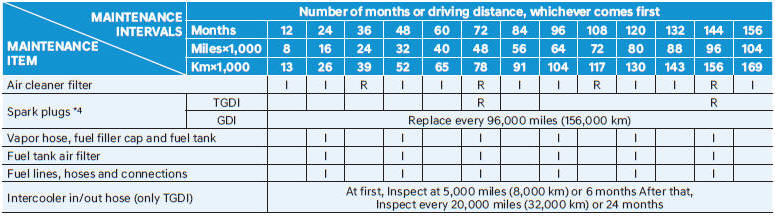

Hyundai Santa Cruz: Scheduled Maintenance Services / Normal Maintenance Schedule
.jpg)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
.jpg)
Scheduled Maintenance Services
Follow Normal Maintenance Schedule if the vehicle is usually operated where
none of
the following conditions apply. If any of the following conditions apply, you
must follow
the Maintenance Under ...
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used
under
severe driving conditions. Refer to the chart below for the appropriate
maintenance
intervals.
R : Replace
I : Inspec ...
