Hyundai Santa Cruz: General Information / Identification Numbers

- Identification Number

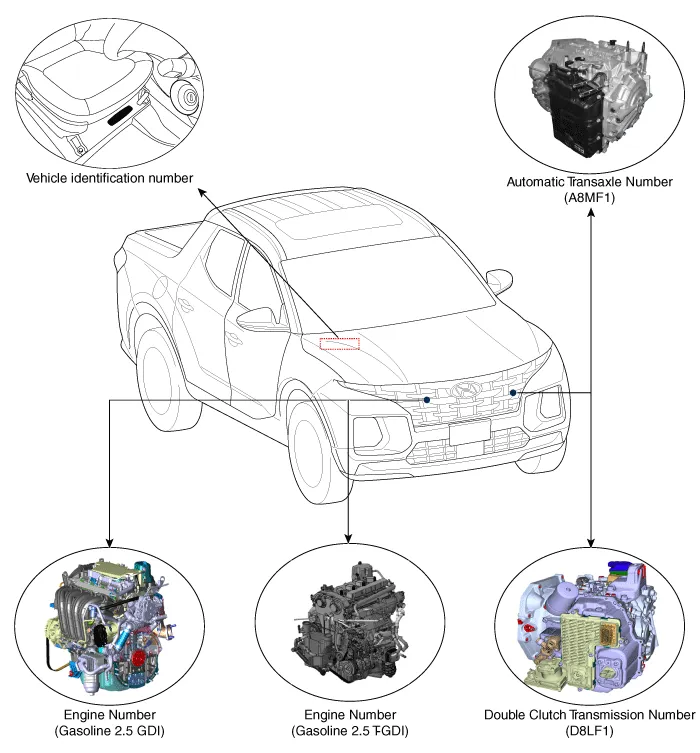

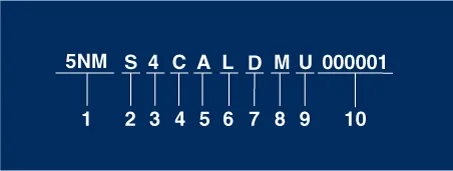

Identification Number Description Vehicle Identification Number

1.World Manufacturer Identifier (WMI)- 5NT : Freight

2.Vehicle line- J : NX4AT

3.Model & Series- A : Low grade (L)- B : Middle-Low grade (GL) - C : Middle grade (GLS, JSL, TAX) - D : Middle-High grade (HGS) - E : High grade (TOP) - F : Premium grade (PGL)

4.Body / Cabin type, Gross Vehicle Weight Rating- 1 : PICKUP 4X2 Cls-A - 2 : PICKUP 4X2 Cls-B - 3 : PICKUP 4X2 Cls-C - 4 : PICKUP 4X2 Cls-D - 5 : PICKUP 4X2 Cls-E - 6 : PICKUP 4X2 Cls-F - 7 : PICKUP 4X2 Cls-G- A : PICKUP 4X4 Cls-A- B : PICKUP 4X4 Cls-B- C : PICKUP 4X4 Cls-C- D : PICKUP 4X4 Cls-D- E : PICKUP 4X4 Cls-E- F : PICKUP 4X4 Cls-F- G : PICKUP 4X4 Cls-G

5.Restraint system, Brake system- A : Seat Belt, FRT A/bag (Driver, Passenger), Side A/bag (1st row), Curtain A/bag (1st row, 2nd row), Hydraulic Brake

6.Engine type- E : Gasoline engine 2.5 GDI- F : Gasoline engine 2.5 T-GDI

7.Check digit - Check digit : 0 - 9, x

8.Model year- M : 2021, N : 2022, P : 2023, R : 2024 .......

9.Plant of production- A : Asan (Korea)- C : Cheonju (Korea)- H : Alabama (U.S.A)- U : Ulsan (Korea)- R : Saint Petersburg (Russia)

10.Vehicle production sequence number- 000001 - 999999

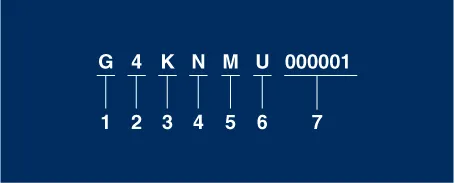

Engine Number

1.Engine fuel- G : Gasoline

2.Engine range- 4 : 4 cycle 4 cylinder

3.Engine development order and capacity- K : THETA III engine (Gasoline)

4.Engine Capacity - N : 2497cc (THETA III)- P : 2497cc (THETA III)

5.Production year- M : 2021, N : 2022, P : 2023, R : 2024 .......

6.Plant of production- A : Asan (Korea)- B : Beijing (China)- C : Sichuan (China)- D : Seosan (Korea)- E : Monterrey (Mexico)- F : Chang zhou (China)- G : Chong qing (China)- H : Hwasung (Korea)- J : Jeonju (Korea)- K : Montgomery (U.S.A)- M : Chennai (India)- P : Poseung (Korea)- S : Sohari (Korea)- T : Izmit (Turkey)- U : Ulsan (Korea)- V : Erramanchi (India)- W : Shandong (China)- Z : Zilina (Slovakia)- 1 : Yancheng (China)

7.Engine production sequence number- 000001 - 999999

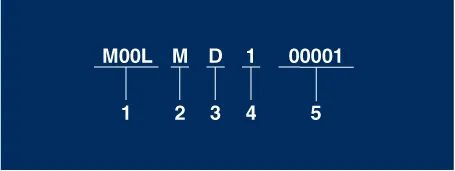

Double ClutchTransmission (D8LF1)

1.Assemble code- M00L : D8LF1

2.Model year- M : 2021, N : 2022, P : 2023, R : 2024 .....

3.Plant of production- D : Hyundai - Dymos (SEOSAN)

4.Production month- 1 : January- 2 : February- 3 : March- 4 : April- 5 : May- 6 : June- 7 : July- 8 : August- 9 : September- A : Octorber- B : November- C : December

5.Transaxle production sequence number- 00001 - 99999

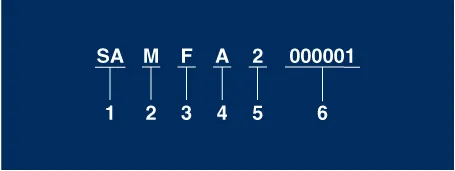

Automatic Transaxle (A8MF1)

1. Model- SB : A8MF1 (2WD)- SD : A8MF1 (4WD)

2.Model year- M : 2021, N : 2022, P : 2023, R : 2024 .....

3.Final gear ratio- X : 4.081

4.Detailed classification- B : Theta III 2.5 GDI 2WD - D : Theta III 2.5 GDI 4WD

5. Plant of production- 2 : Powertech Plant 2- 4 : Powertech Plant 4- U : Ulsan Plant 1- S : Ulsan Plant 2- N : Ulsan Plant 3- H : Hwasung- M : Mexcico

6.Transaxle production sequence number- 000001 - 999999

    Other information:
