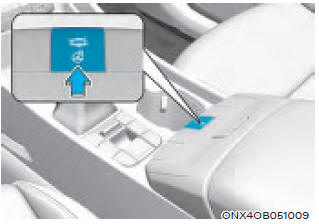

When the ignition switch is in the ON position or when the engine is running, press the heated steering wheel button to warm the steering wheel.
The indicator on the button will illuminate.
To turn the heated steering wheel off, press the button again. The indicator on the button will turn off.
• Automatic Controls for the Driver Based on Climate Control System Settings (if equipped)
- The Automatic Comfort Control feature can control the steering wheel heater operation according to the ambient temperature and the set climate control temperature while the engine is running.
If the heated steering wheel switch is pressed while the Automatic Comfort Control feature is operating, then the heated steering wheel operation will be controlled manually.
The Auto Comfort Control feature is enabled from the Vehicle Settings menu on the navigation infotainment screen.
- The heated steering wheel defaults to the OFF position whenever the ignition switch is ON. However, if the Auto Comfort Control function is ON, the heated steering wheel will turn on and off depending on the ambient temperature and the set climate control temperature.
Information
The heated steering wheel will turn off automatically approximately 30 minutes after the heated steering wheel is turned on.
NOTICE
Do not install any cover or accessory on the steering wheel. This cover or accessory could cause damage to the heated steering wheel system.
