Hyundai Santa Cruz: Forward Collision–Avoidance Assist (FCA) (Front view camera only) / Forward Collision-Avoidance
Assist Operation
Warning and control
The basic function of Forward Collision
Avoidance Assist is to help warn the
driver and, if necessary, control the
vehicle to help mitigate a collision. The
following warning messages may be
displayed depending on the collision risk
level.
![](images/forward_collision_avoidance_assist_operation-1595/1344/pages.85(7).jpg)

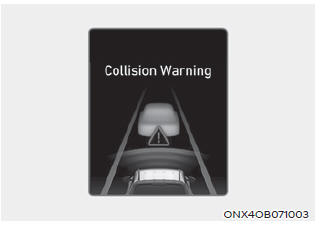

Collision Warning
- To warn the driver of a collision, the
‘Collision Warning’ warning message
appears on the cluster and an audible
warning sounds.
- If a vehicle is detected in front, the
function operates when your vehicle
speed is between approximately 6-112
mph (10-180 km/h).
- If a pedestrian or cyclist is detected
in front, the function operates when
your vehicle speed is between
approximately 6-37 mph (10-60 km/h).
- If ‘Active Assist’ is selected, braking
may be assisted.
![](images/forward_collision_avoidance_assist_operation-1595/1344/pages.86(7).jpg)

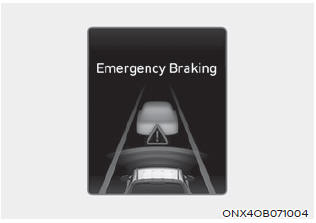

Emergency Braking
- To warn the driver that emergency
braking is assisted, the ‘Emergency
Braking’ warning message appears
on the cluster and an audible warning
sounds.
- If a vehicle is detected in front, the
function operates when your vehicle
speed is between approximately 6-37
mph (10-60 km/h).
- If a pedestrian or cyclist is detected
in front, the function operates when
your vehicle speed is between
approximately 6-37 mph (10-60 km/h).
- In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
![](images/forward_collision_avoidance_assist_operation-1595/1344/pages.87(7).jpg)

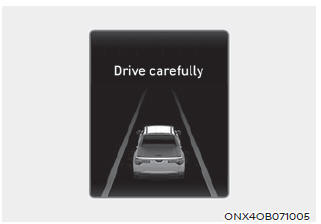

Stopping vehicle and ending brake control
- When the vehicle is stopped due
to emergency braking, the ‘Drive
carefully’ warning message appears
on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
- Brake control ends after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:
- For your safety, change the Settings
after parking the vehicle at a safe
location.
- With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button, Forward Collision-Avoidance
Assist will turn off automatically.
In this case, Forward Collision-
Avoidance Assist cannot be set
from the Settings menu and the
warning light illuminates on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.
- Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.
- The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance,
and, if necessary, depress the brake
pedal to reduce driving speed or to
stop the vehicle.
- Never deliberately operate Forward
Collision-Avoidance Assist on people,
animal, objects, etc. It may cause
serious injury or death.
- Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.
- Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.
- During Forward Collision-Avoidance
Assist operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.
- If any other system’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.
- You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.
- Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.
WARNING
- Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate properly.
- During emergency braking, braking
control by Forward Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.
CAUTION
Depending on the condition of the
vehicle, pedestrian and cyclist in front
and the surroundings, the speed range
to operate Forward Collision-Avoidance
Assist may reduce. Forward Collision-
Avoidance Assist may only warn the
driver, or it may not operate.
Information
- In a situation where collision is
imminent, braking may be assisted by
Forward Collision-Avoidance Assist
when braking is insufficient by the
driver.
- The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the cluster.
Setting features
Forward Safety
With the engine on, select or deselect 'Driver Assistance > Forward Safety'
from
the Settings menu to set whether to use
each function.
- If ‘Active Assist’ ...
Forward Collision-Avoidance Assist
malfunction
When Forward Collision-Avoidance
Assist is not working properly, the ‘Check
Forward Safety system’ warning message
appears, and the and
warnin ...
