Hyundai Santa Cruz: Engine Control System / Engine Control Module (ECM)

- ECM Terminal And Input/Output signal

ECM Terminal Function

Connector [A]
Pin NoDescription
1Integrated Thermal Mangement Module (ITM) Motor (+)
2Integrated Thermal Mangement Module (ITM) Motor (-)
3-
4-
5-
6-
7ETC Motor control (+)
8ETC Motor control (-)
9Cooling Pan PWM control
10Vehicle Speed signal output
11Engine Control Relay control
12Fuel Pump Relay control
13Coolant Temperature Sensor [Electronic water pump (EWP) side] signal input
14-
15-
16Intake Air Temperature Sensor (IATS) signal input
17Manifold Absolute Pressure Sensor (MAPS) signal input
18-
19A/C #1 Relay control
20-
21-
22EWGA DC Motor control (+)
23EWGA DC Motor control (-)
24-
25-
26RCV Control Solenoid Valve control
27-
28Coolant Temperature Sensor [Cylinder Block side] signal input
29-
30Integrated Thermal Mangement Module (ITM) Motor signal input
31Crankshaft Position Sensor (CKPS) signal input
32-
33Sensor Sheild [KS]
34Sensor ground [Coolant Temperature Sensor (Electronic Water Pump (EWP) Side)]
35Oil Pressure signal input
36-
37Boost Pressure Sensor (BPS) signal input
38Sensor ground [MAPS]
39-
40Sensor ground [BPS]
41-
42-
43-
44-
45-
46Variable Force Solenoid (VFS) control
47Canister Close Valve (CCV) control
48-
49Sensor ground [RPS]
50-
51Sensor Ground [CMPS (Bank 1 / Exhaust)]
52Sensor Ground [CMPS (Bank 1 / Intake)]
53Sensor ground [CKPS]
54Sensor ground [TPS]
55Sensor ground [ECTS (Water Temperature Control Assembly side)]
56Sensor ground [OPTS]
57-
58Sensor ground [EWGA]
59Sensor ground [ECTS (Cylinder Block side)]
60-
61Sensor ground [ITM motor]
62-
63-
64E-CVVT relay power
65E-CVVT motor [+] control
66Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] Heater Control
67Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] Heater Control
68-
69-
70Rail Pressure Sensor (RPS) Signal Input
71Start Relay (High) control
72Camshaft Postition Sensor (CMPS) [Bank 1/Exhaust] signal input
73-
74Throttle Position Sensor (TPS) #2 signal input
75Throttle Position Sensor (TPS) #1 signal input
76-
77Oil Temperature signal input
78Sensor Power (+5V) [CMPS (Bank 1 / Intake), CKPS, MAPS, BPS]
79Sensor Power (+5V) [TPS]
80-
81Sensor ground [KS]
82Rc (Compensative Resistance)
83Rc/Rp (Pumping cell Voltage)
84Sensor Ground [HO2S (Bank 1 / Sensor 2)]
85E-CVVT relay power
86E-CVVT motor [+] control
87E-CVVT motor [-] control
88E-CVVT motor [-] control
89-
90-
91Electric Waste Gate Actuator (EWGA) Position Sensor Feedback Signal Input
92-
93-
94Camshaft Position Sensor (CMPS) [Bank 1 / Intake] Signal Input
95-
96Start Motor Control Switch
97Coolant Temperature Sensor [Coolant Temperature Control Assembly side] signal input
98-
99Sensor Power (+5V) [RPS]
100Sensor Power (+5V) [CMPS (Bank 1 / Exhaust), EWGA]
101Sensor Power (+5V) [OPTS, ITM Motor]
102Knock Sensor (KS) signal input
103VS+ (NERNST Cell Voltage)
104VS-/IP- (Virtual Ground)
105Oxygen Sensor [Bank 1 / Sensor 2] signal input

Connecter [K]
Pin NoDescription
1ECM Ground
2ECM Ground
3Battery Power (B+)
4ECM Ground
5Battery Power (B+)
6Battery Power (B+)
7-
8MPI Injector (Cylinder #4) control
9MPI Injector (Cylinder #1) control
10MPI Injector (Cylinder #3) control
11MPI Injector (Cylinder #2) control
12Ignition Coil (Cylinder #3) control [Without Smart Key]
Ignition Coil (Cylinder #2) control [Apply SmartKey]
13Ignition Coil (Cylinder #1) control [Without Smart Key]
Ignition Coil (Cylinder #4) control [Apply SmartKey]
14Ignition Coil (Cylinder #2) control [Without Smart Key]
Ignition Coil (Cylinder #3) control [Apply SmartKey]
15Ignition Coil (Cylinder #4) control [Without Smart Key]
Ignition Coil (Cylinder #1) control [Apply SmartKey]
16Sensor Power (+5V) [APT, FTPS]
17Accelerator Position Sensor (APS) #2 signal input
18-
19-
20-
21-
22GDI Injector (Cylinder #2) [Low] Control
23GDI Injector (Cylinder #3) [Low] Control
24-
25-
26-
27-
28Brake Switch (Test) signal input
29-
30-
31-
32-
33Fuel Tank Level Sender (FLS) signal input
34-
35-
36-
37Engine Speed signal output
38Oil Pump Solenoid Valve control
39GDI Injector (Cylinder #2) [High] Control
40GDI Injector (Cylinder #3) [High] Control
41ON/START Power
42-
43-
44-
45-
46-
47-
48-
49Sensor Ground (APT)
50-
51Sensor graund (APS #2)
52-
53-
54-
55-
56High Pressure Fuel Pump [High] Control
57High Pressure Fuel Pump [Low] Control
58Immobilizer (Smart Key) communication line
59Local-CAN (Low) #1
60P-CAN (Low)
61Local-CAN (Low) #1 [longitudinal resistance]
62-
63Sensor ground (FTPS)
64-
65Sensor ground (APS #1)
66A/C Pressure Transducer (APT) signal input
67-
68Brake Switch (Lamp) signal input
69-
70-
71-
72Purge Control Solenoid Valve (PCSV) control
73GDI Injector (Cylinder #1) [High] Control
74GDI Injector (Cylinder #4) [High] Control
75Battery Power (B+)
76Local-CAN (High) #1
77P-CAN (High)
78Local-CAN (Low) #1 [longitudinal resistance]
79-
80Fuel Tank Pressure Sensor (FTPS) signal input
81Accelerator Position Sensor (APS) #1 signal input
82-
83Sensor Power (+5V) [APS #1]
84Sensor Power (+5V) [APS #2]
85Alternator (LIN2)
86-
87-
88E-CVVT relay control
89-
90GDI Injector (Cylinder #1) [Low] Control
91GDI Injector (Cylinder #4) [Low] Control

- Removal

1.Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

2. Remove the air cleaner assembly.(Refer to Engine Mechanical System - "Air Cleaner")

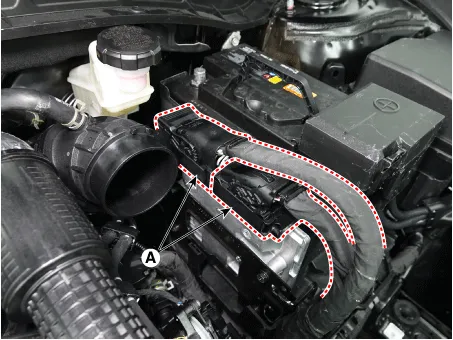

3.Disconnect the ECM connector (A).

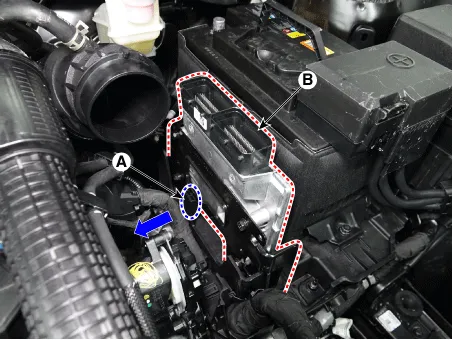

4.Release the fixing hook (A), and then removing the ECM (B).

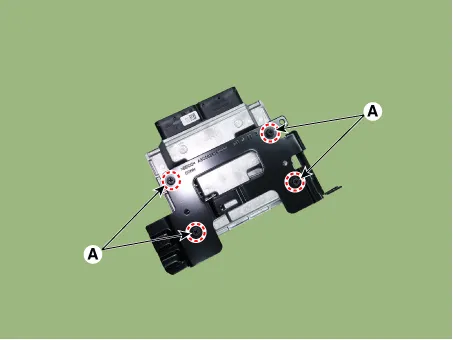

5.Remove the ECM after loosening the mounting bolts (A).

Tightening torque :6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)

- Installation

1.Install in the reverse order of removal.

- Inspection

1.TEST ECM GROUND CIRCUIT : Measure resistance between ECM and chassis ground using the backside of ECM harness connector as ECM side check point. If the problem is found, repair it.

Specification : Below 1Ω

2.TEST ECM CONNECTOR : Disconnect the ECM connector and visually check the ground terminals on ECM side and harness side for bent pins or poor contact pressure.

3.If problem is not found in Step 1 and 2, the ECM could be faulty. If so, replace the ECM with a new one, and then check the vehicle again. If the vehicle operates normally then the problem was likely with the ECM.

4.RE- TEST ECM : Install the ECM (may be broken) into a known-good vehicle and check the vehicle. If the problem occurs again, replace the ECM with a new one. If problem does not occur, this is intermittent problem.(Refer to "Intermittent Problem Inspection Procedure" in Basic Inspection Procedure)

- Adjustment ECM neutralization procedure (With immobilizer)

• When replacing the ECM, the vehicle equipped with the immobilizer must be performed procedure as below.

[When installing an ECM with learning experience]

1)Perform "ECM Neutral Mode" procedure with diagnostic tool.(Refer to Body Electrical System - "Immobilizer System")

2)After finishing "ECM Neutral Mode", perform "Key teaching" procedure with diagnostic tool.(Refer to Body Electrical System - "Immobilizer System")

[A new ECM with no learning experience is installed.]

– Perform "Key Teaching" procedure with diagnostic tool.(Refer to Body Electrical System - "Immobilizer System")

ECM Neutralization procedure (With smart key)

• When replacing the ECM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.

[When installing an ECM with learning experience]

1)Perform "ECM Neutral Mode" procedure with diagnostic tool.(Refer to Body Electrical System - "Smart Key")

2)After finishing "ECM Neutral Mode", Use a key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.(Refer to Body Electrical System - "Smart Key")

[A new ECM with no learning experience is installed.]

– Using the key or start button and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.(Refer to Body Electrical System - "Smart Key")

ETC Module Learning Process After replacing or reinstalling the new ECM, if you do not perform the ETC module learning procedure, the ETC module learning procedure must be performed since shift shock or failure code may be displayed.(Refer to Engine Control System - "ETC System")VIN Programming Procedure VIN (Vehicle Identification Number) is a number with the vehicle's information. (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to the group "GI" in this SERVICE MANUAL.) When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) will be set.



• The programmed VIN cannot be changed. When writing the VIN, confirm the VIN carefully.

1.Turn the ignition switch OFF.

2.Connect the diagnostic tool to Data Link Connector (DLC).

3.Turn the igntion switch ON.

4."Select "Vehicle, Model Year, Engine, System".

5.Select "Additional Function".

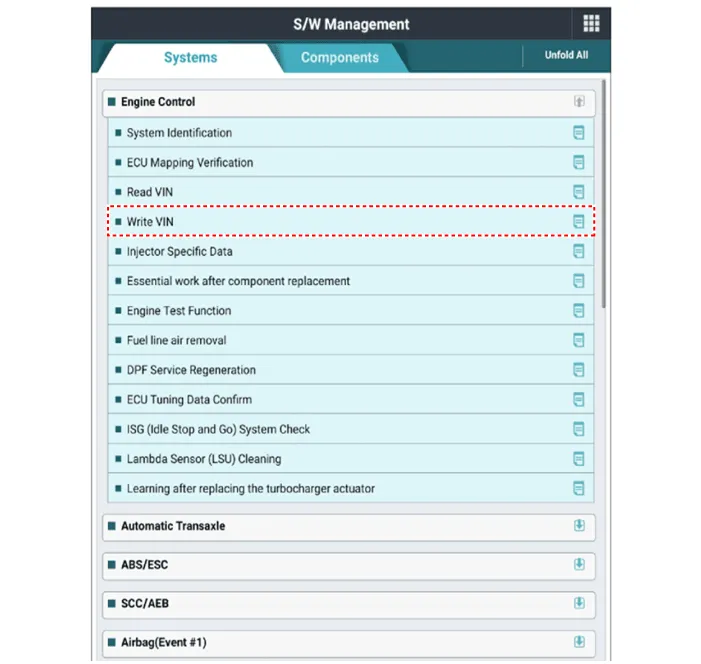

6.Select "Write VIN".

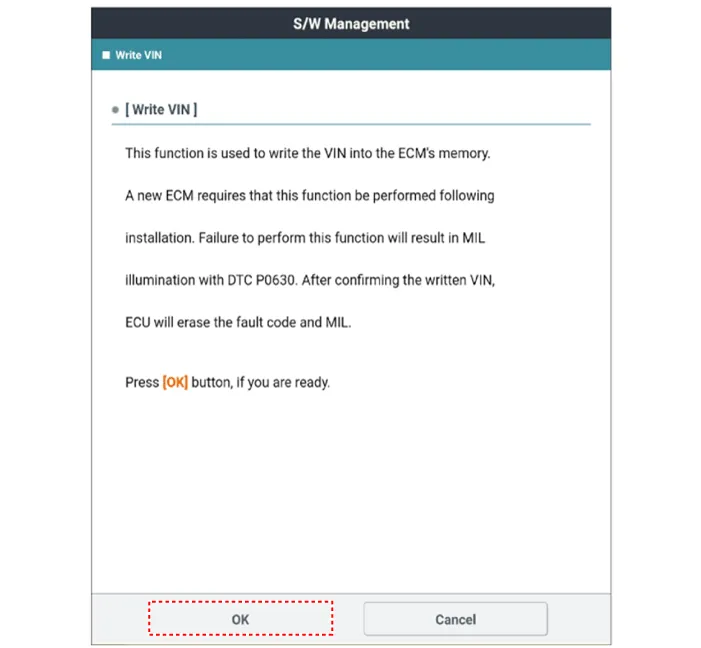

7.Perform the operation in accordance with the instructions of diagnostic tool.



• The programmed VIN cannot be changed. When writing the VIN, reconfirm the VIN.
