Setting features
Driver Attention Warning
With the engine on, select 'Driver Assistance>Driver Attention Warning' from the Settings menu to set whether to use each function.

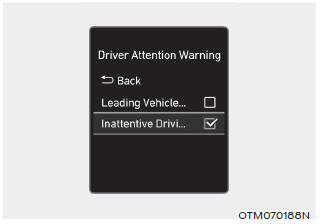

- If ‘Inattentive Driving Warning’ is selected, Driver Attention Warning informs the driver of the driver’s attention level and will recommend taking a break when the level falls below a certain level.
Leading Vehicle Departure Alert

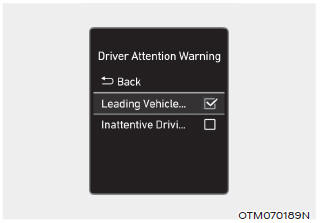

- If ‘Leading Vehicle Departure Alert’ is selected, the function informs the driver when a detected vehicle in front departs from a stop.
Warning Timing

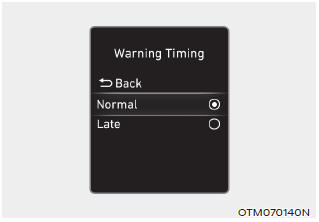

With the engine on, select 'Driver Assistance>Warning Timing' from the Settings menu to change the initial warning activation time for Driver Attention Warning.
When the vehicle is first delivered, Warning Timing is set to ‘Normal’. If you change the Warning Timing, the Warning Timing of other Driver Assistance systems may change.
Information
If the engine is restarted, Driver Attention Warning will maintain the last setting.
