Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Engine Mechanical System / Drive Belt System / Drive Belt

Hyundai Santa Cruz: Drive Belt System / Drive Belt

- Removal

1.Remove engine room under cover.(Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")

2.Remove the drive belt (A).

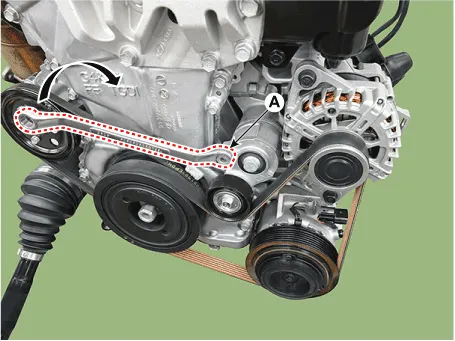

• To release the tensioner, rotate the tensioner by turning the tensioner arm boss (A) clockwise using a wrench.

3.Remove the water pump belt.

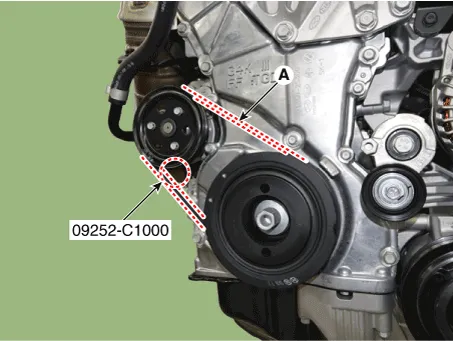

(1)Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.

(2)Remove the water pump belt (A) by turning the damper pulley clockwise.

- Inspection Visually check the belt for excessive wear, frayed cords etc. If any defect has been found, replace the drive belt.

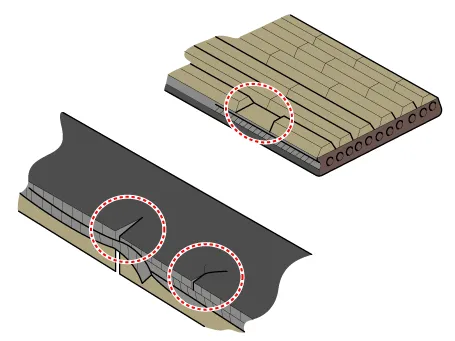

• Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.

- Installation

1.Install the water pump belt.

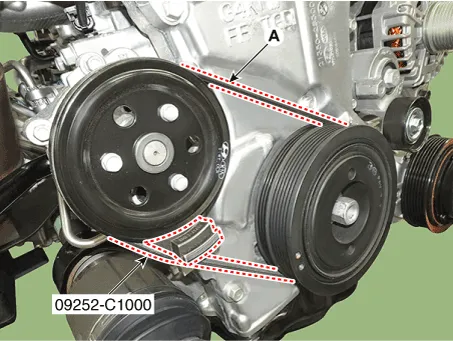

(1)Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.

(2)Install the water pump belt (A) by turning the damper pulley clockwise.

• Install the water pump belt while being careful not to damage the water pump belt caused by water pump pulley mounting bolt.

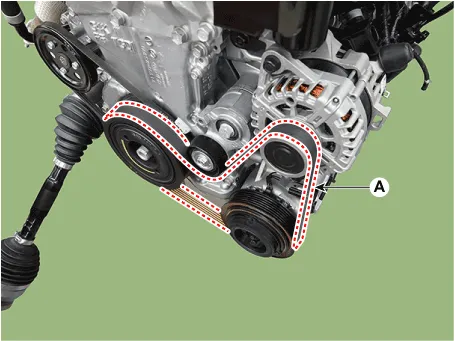

2.Install the drive belt (A).

• To release the tensioner, rotate the tensioner by turning the tensioner arm boss (A) clockwise using a wrench.

3.Install in the reverse order of removal.
